Model Simulations
Experiment: temqv
This is the 21.0 kyr BP simulation for an extension of the temi series but with CO2 set to the 100 year means of the transient runs. Deglaciation BBC runs using Peltier6g and TRIFFID. Dynamic mode.
This job is a standard version of HadCM3M2.1D (dynamic TRIFFID) based on tdaae. However, it has a number of small additions/changes. These include: (1) the dark_respiration update is included, (2) the orbital update as in FAMOUS, (3) salinity conservation is included, (4) age of water tracer included. One executable can be used for all time periods
The boundary conditions are (a) peltier6g, used in anomaly mode, (b) GHGs from the latest estimates, (c) global salinity is 1PSU more at LGM and scaled with sealevel for other periods (d) orbital changes via FAMOUS update (default is Berger and Loutre 1991)
Brief Description
Fuller Description
Total Length of Run (in years)
Averaging period (in years)
Spinup period (in years)
CO2 (in ppmv)
CH4 (in ppbv)
N2O (in ppbv)
CFC11 (in pptv)
CFC12 (in pptv)
Computer used for simulation
Compiler used for simulation
Date of first entry in datebase
Date of most recent modification to entry in database
21.0kyr_BP
This is identical to temo series but with the new cloud physics/parameters.
350
100
250
190
375
193
0
0
bc4
Intel_v17.0.1_bc4
2021_06_01_21_03
2021_06_01_21_03
You can access the means from this run, by going here
You can access the ocean integrals from this run, by going here And noise diagnostics here
This page shows a small subset of images from this simulation. They have
already been produced and there are no optional choices. If you want to do a
more detailed examination of the model results, you can go to the
main page and select one of the Parts. This will give you full access the system
Summary of Results for Experiment temqv
Atlantic Meridional Overturning Strength
Depth of Max Atlantic Overturning
Latitude of Max Atlantic Overturning
Variable
DJF
JJA
ANN
Monthly
Variable
Surface Air Temperature
Surface Air Temperature Time Series

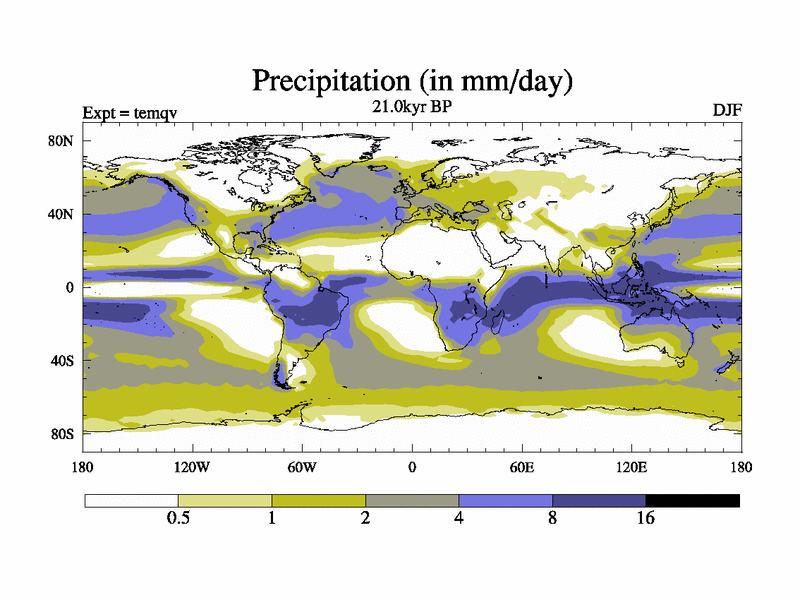

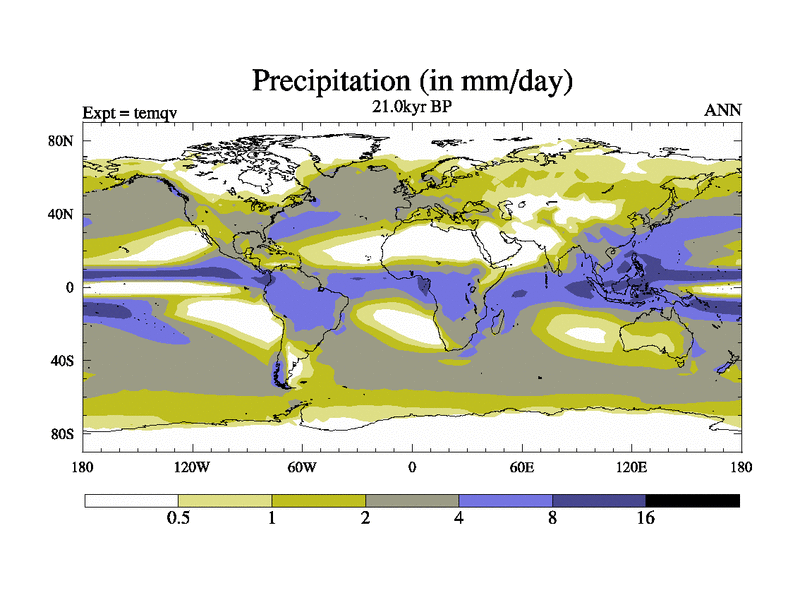

Total Precipitation

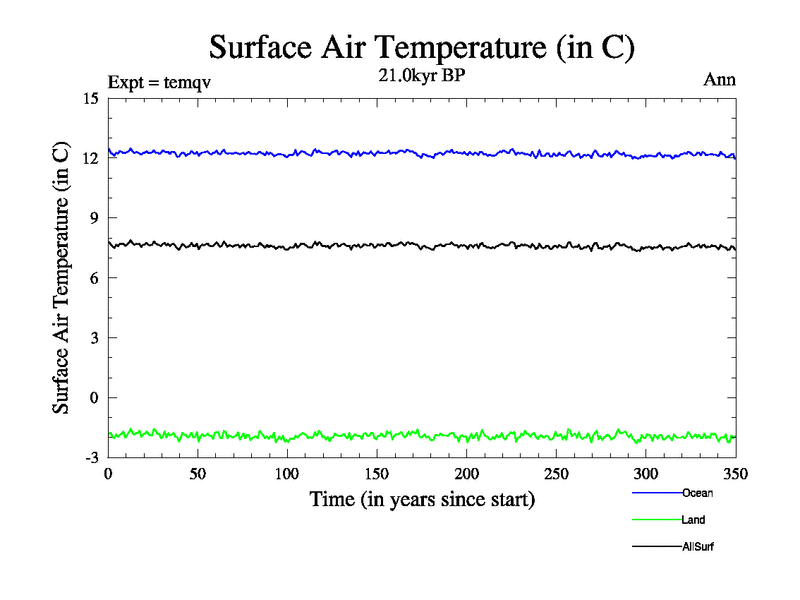

Surface Air Temperature Time Series (annual means)
Evaporation
Soil Moisture in Layer 4 (Deepest layer) (annual means)
Precipitation - Evaporation
Gregory Plot (10 year running mean)

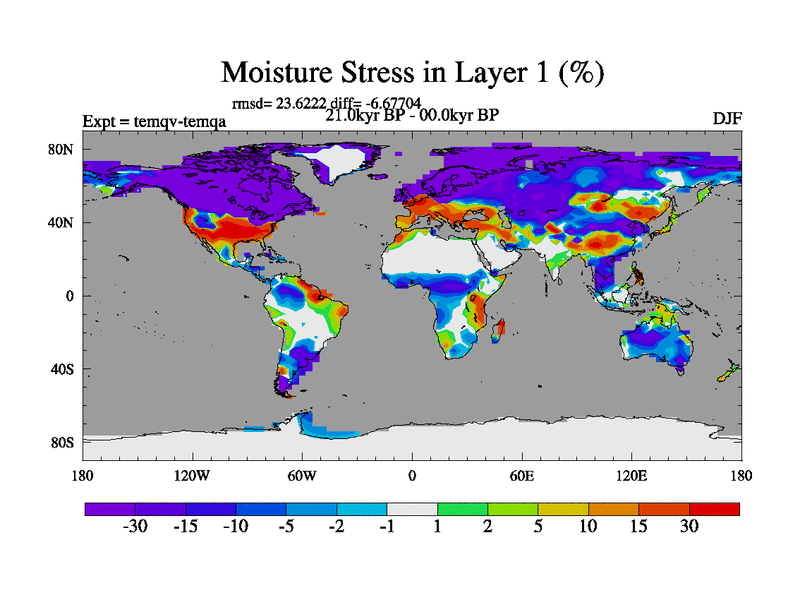

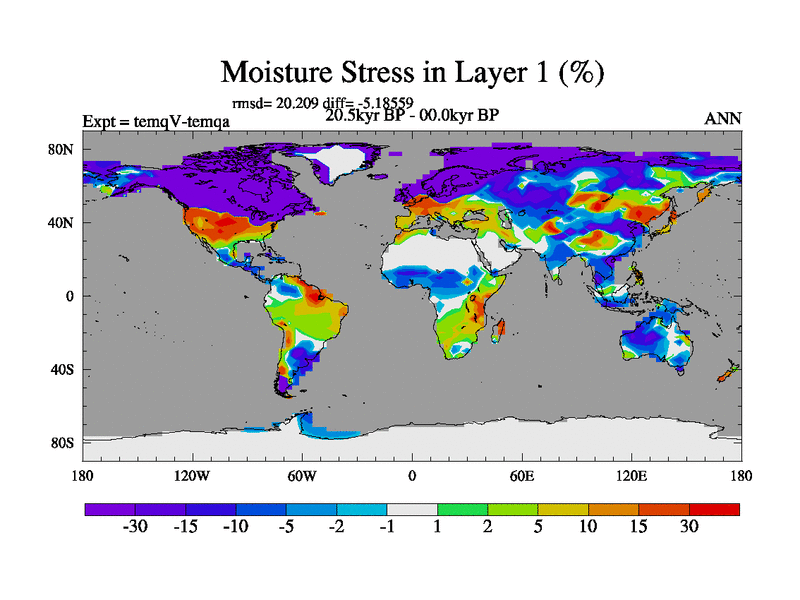

Fractional Plant Stress (layer 1)
BIOME4

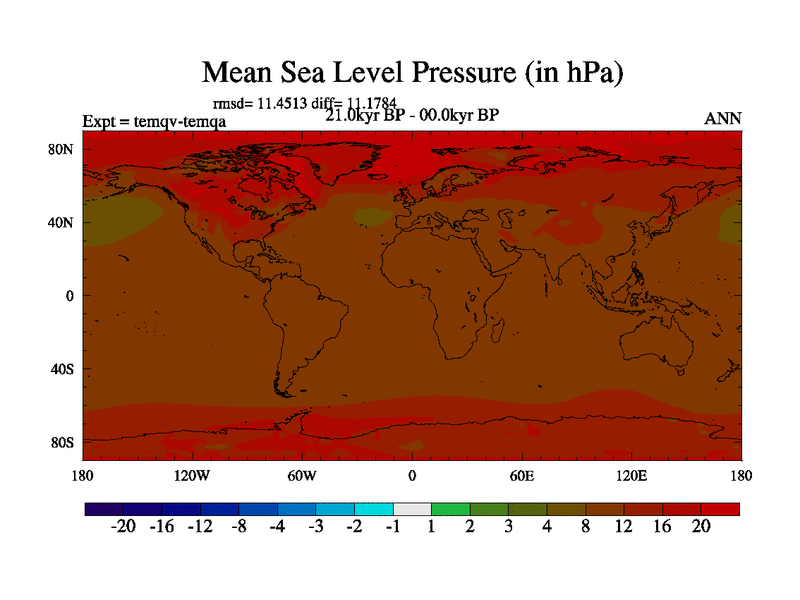

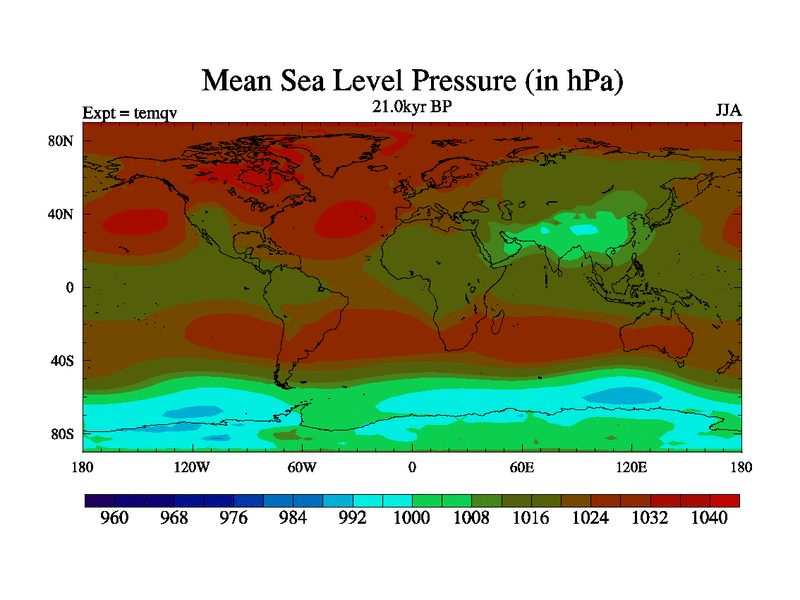

Mean Sea Level Pressure
BIOME4 with CO2 changed

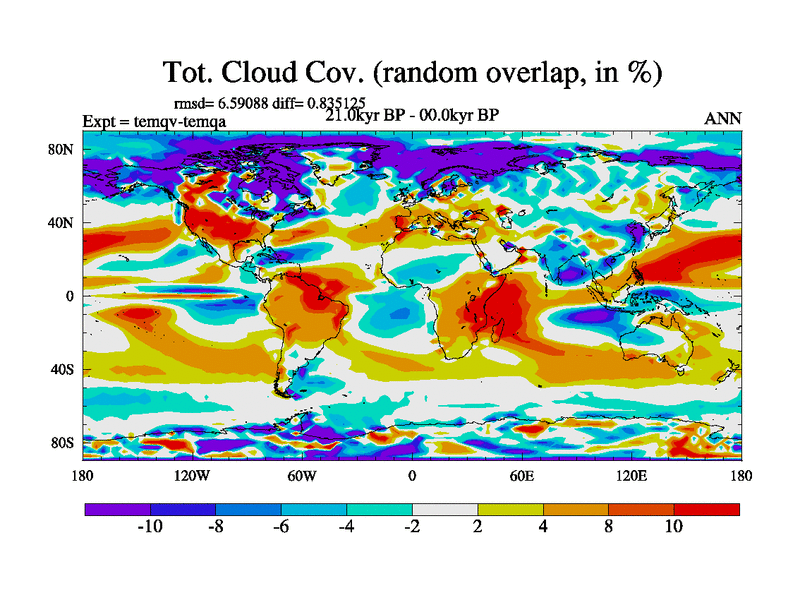

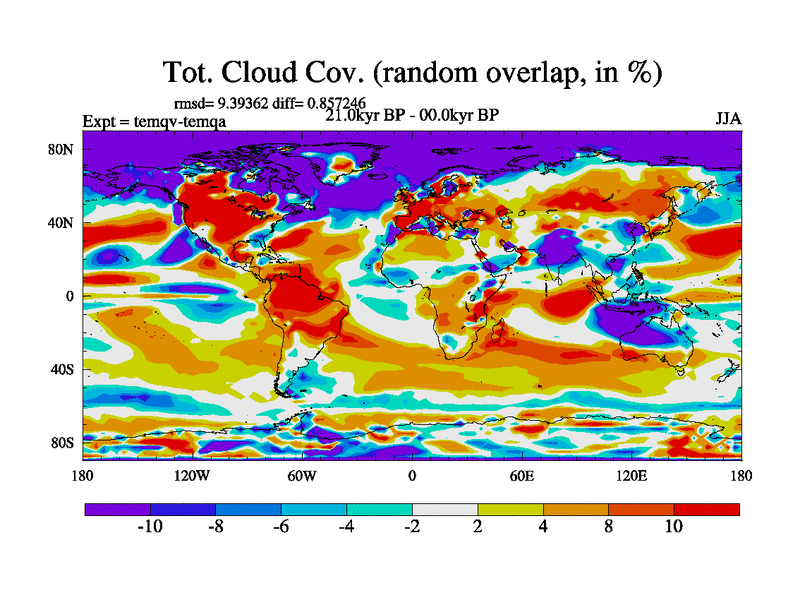

Total Cloud Cover

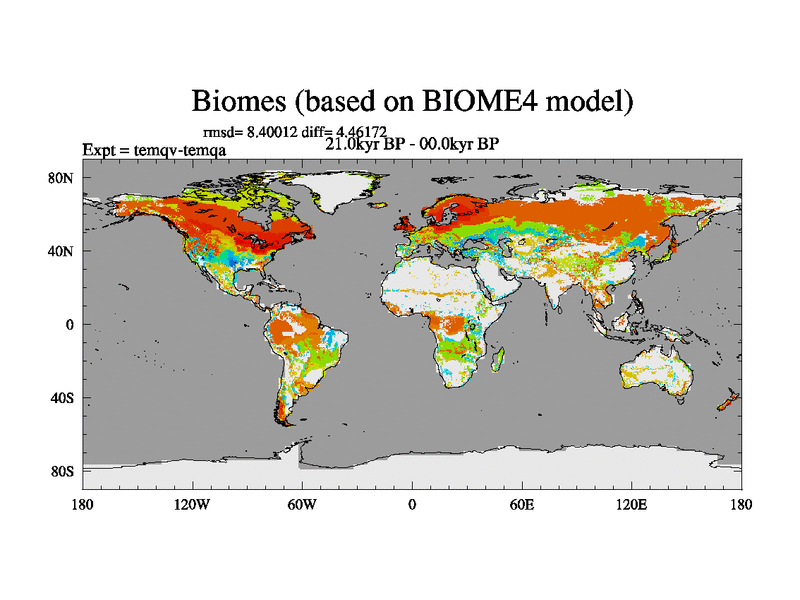

BIOME4 with CO2 changed and anomaly of climate

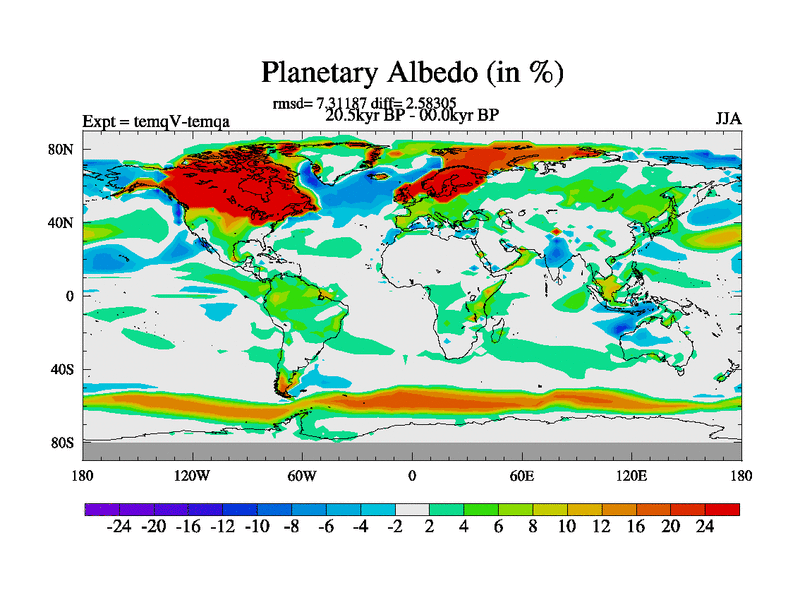

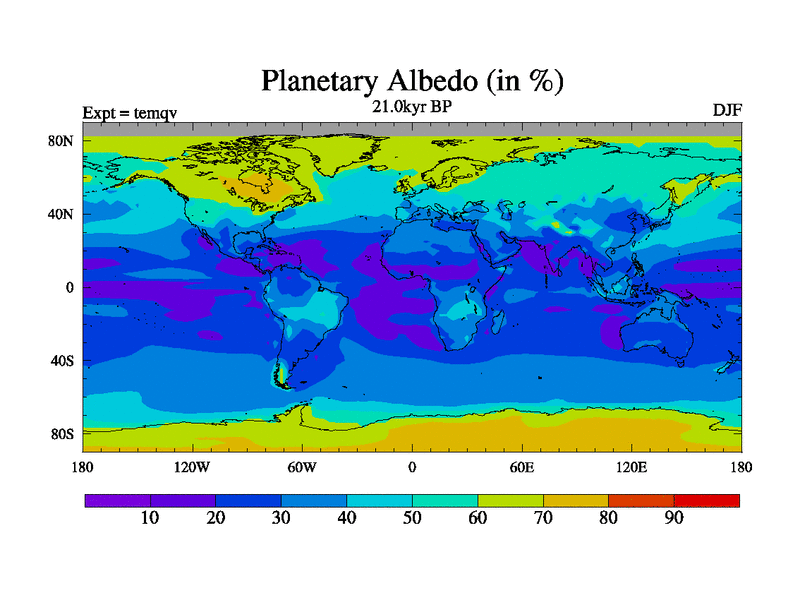

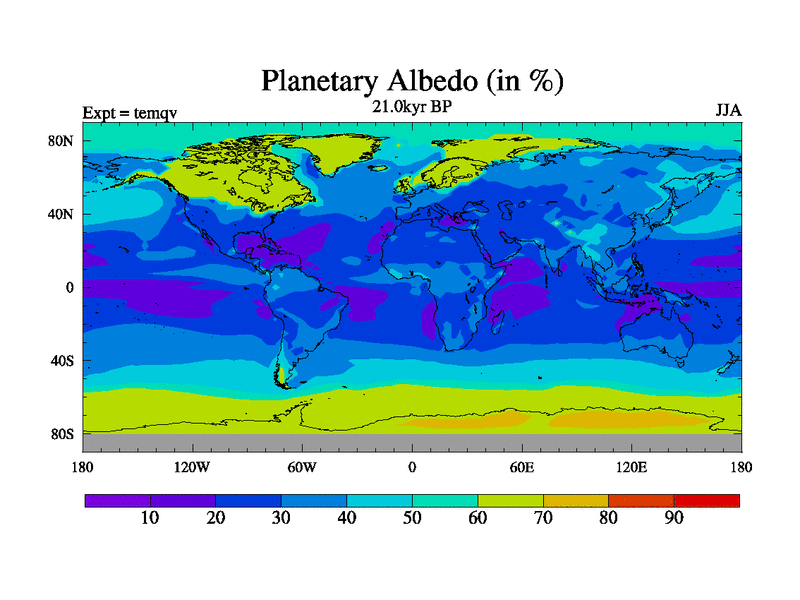

Plantary Albedo
Warm Month Mean

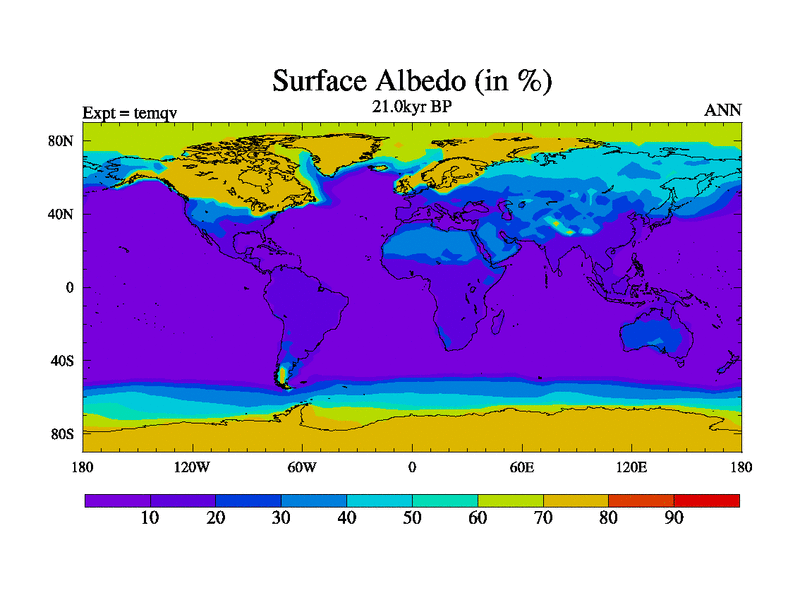

Surface Albedo

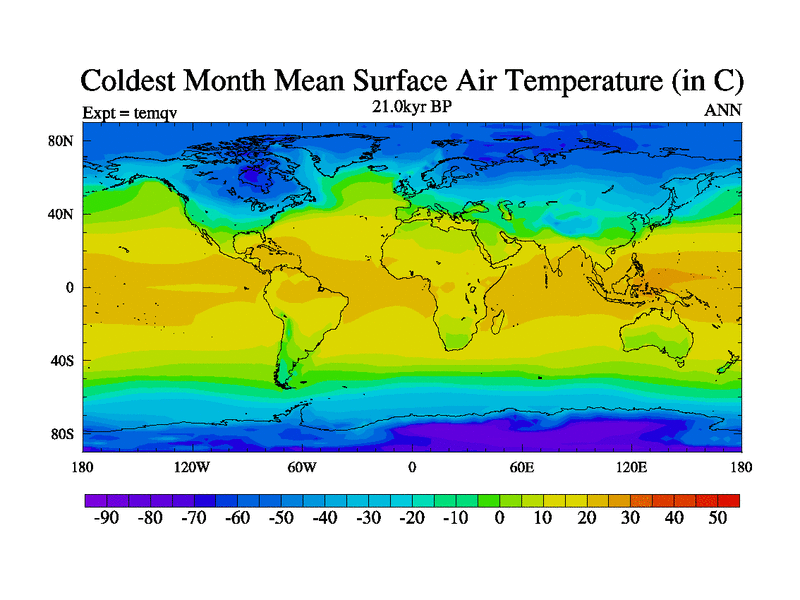

Cold Month Mean

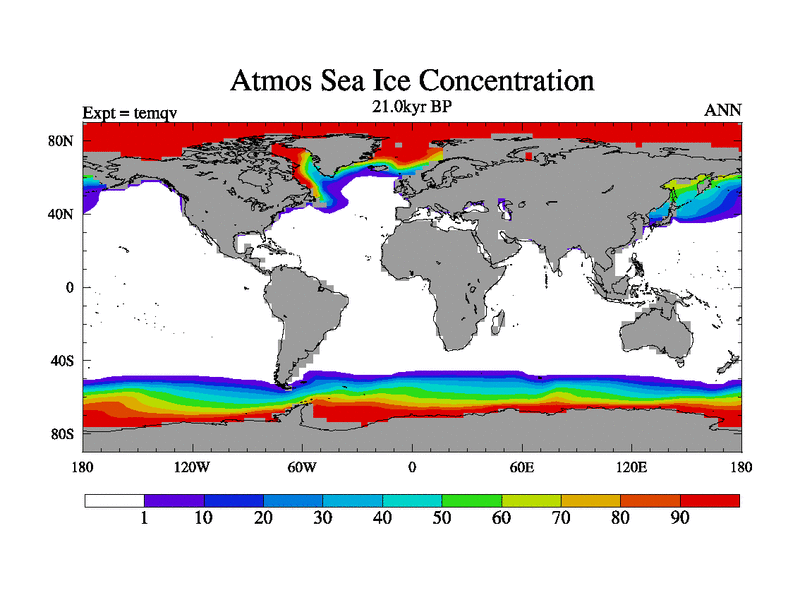

Sea Ice Concentration
Mean Annual Temperature Cycle
Stream Function at 200 hPa

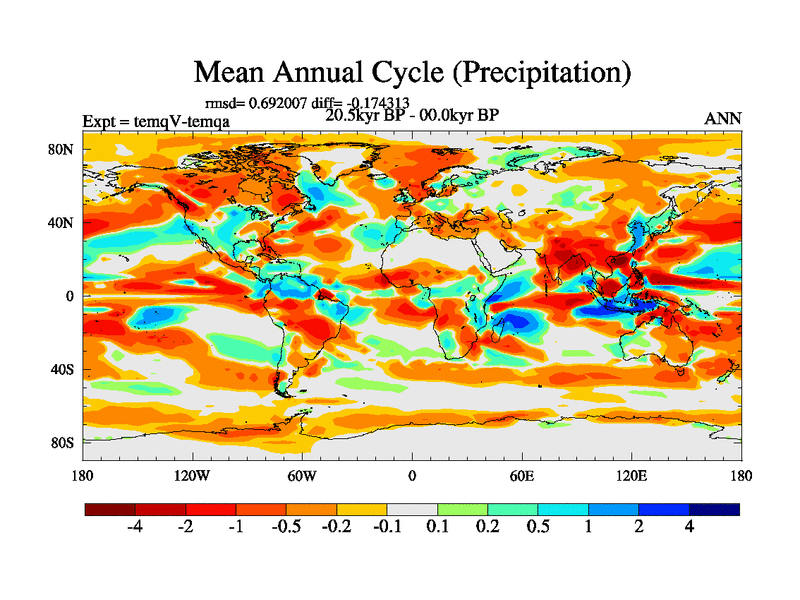

Mean Annual Precipitation Cycle

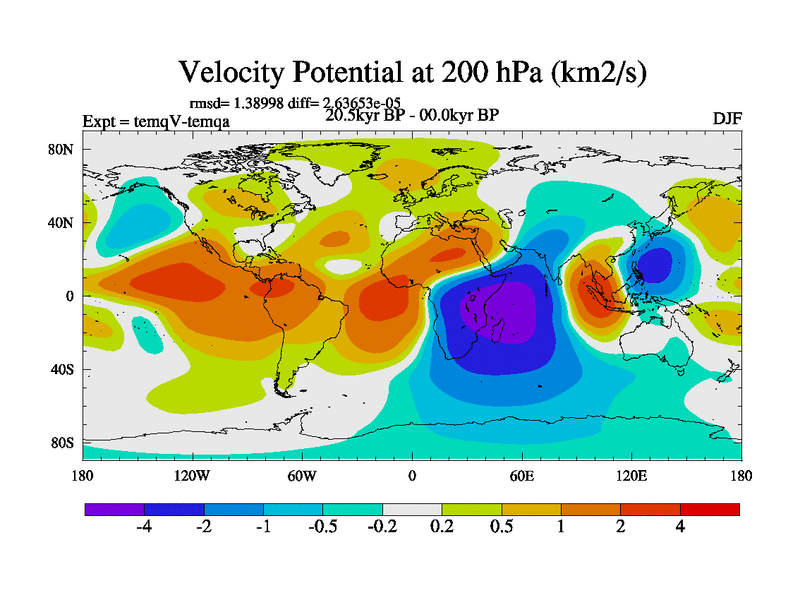

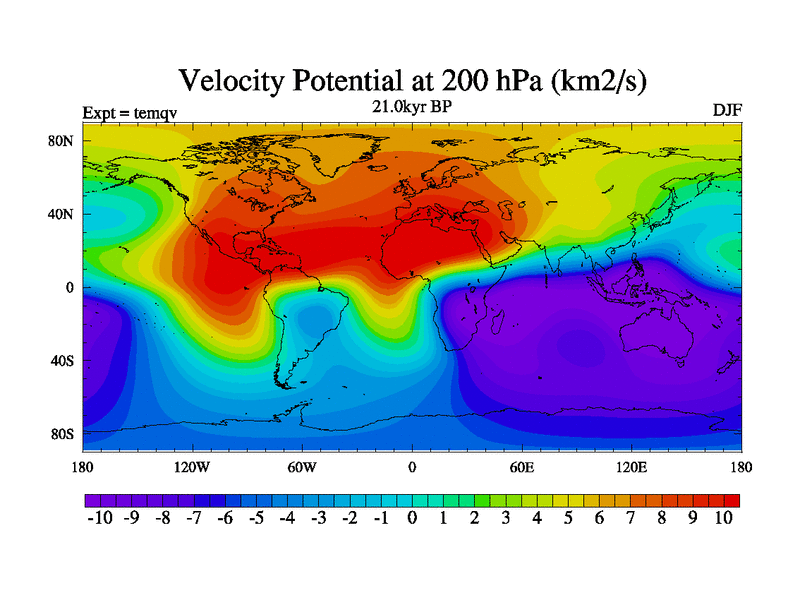

Velocity Potential at 200 hPa
Vegetation Fractions

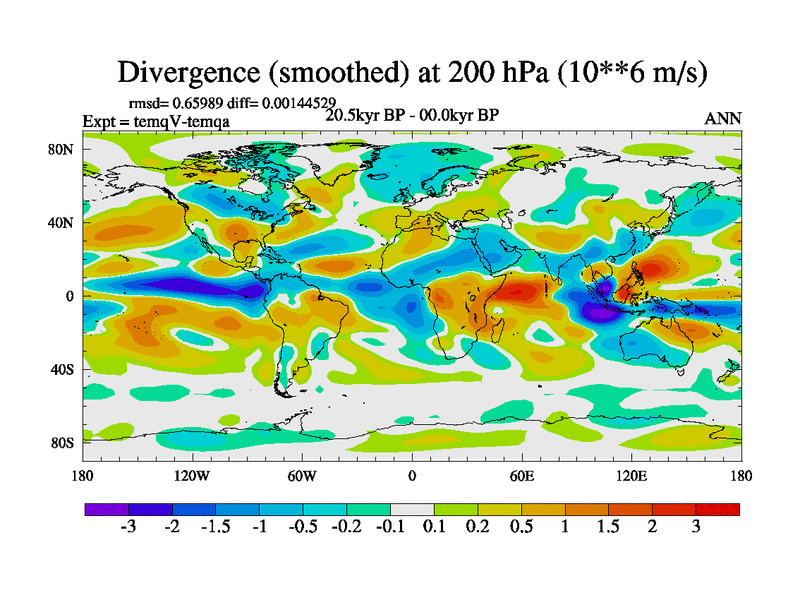

Divergence (Smoothed) at 200 hPa
Soil Carbon Time Series

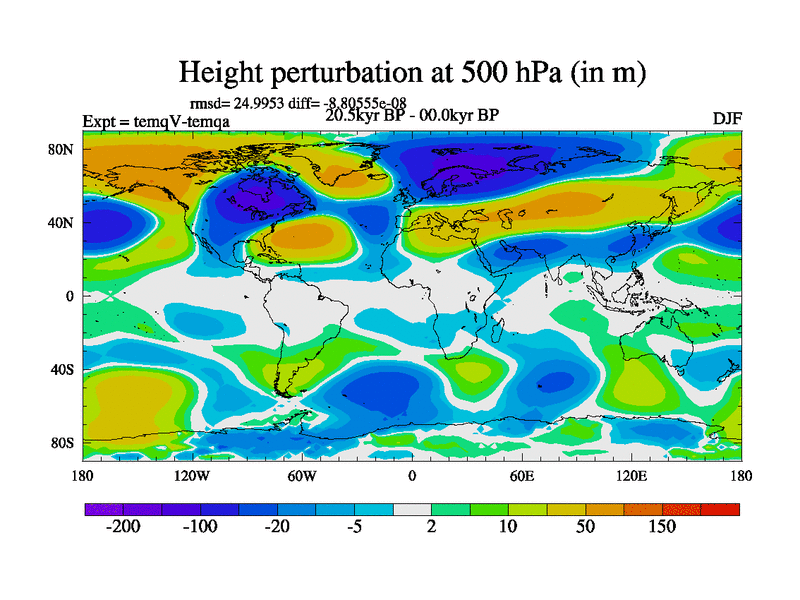

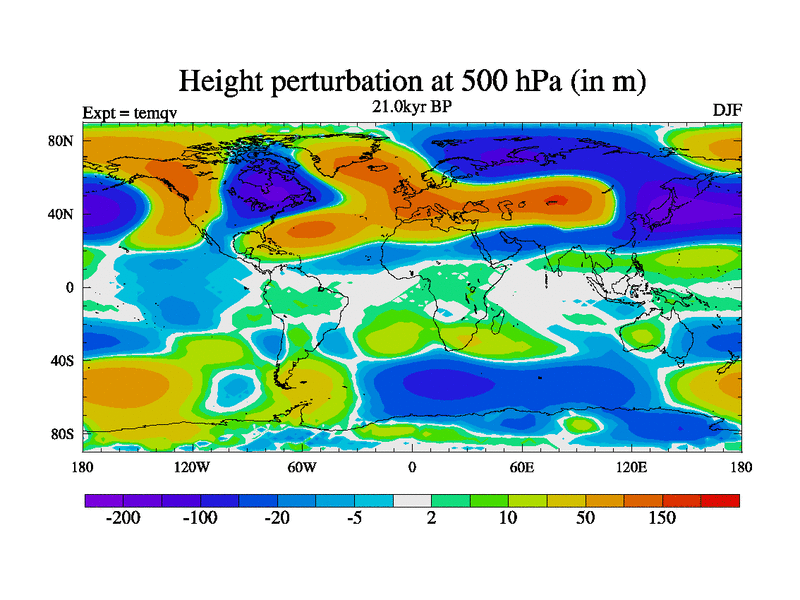

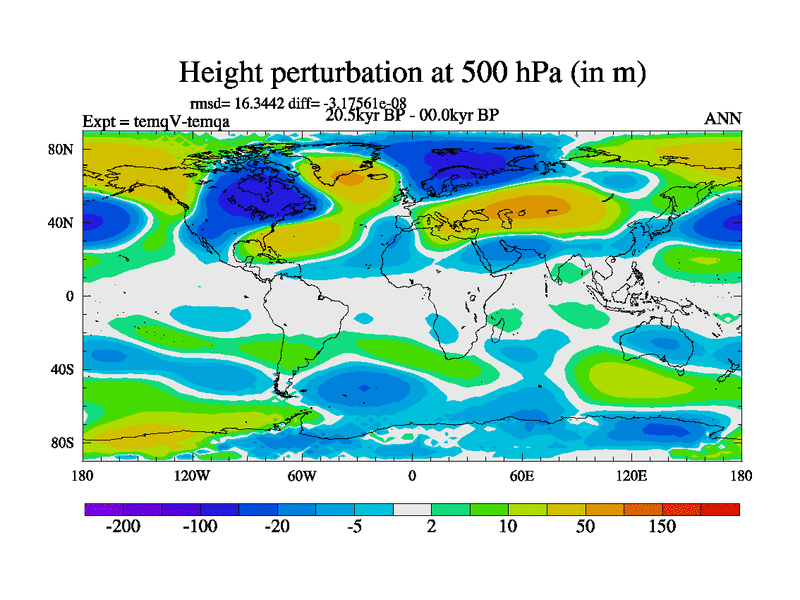

Perturbation Height at 500 hPa

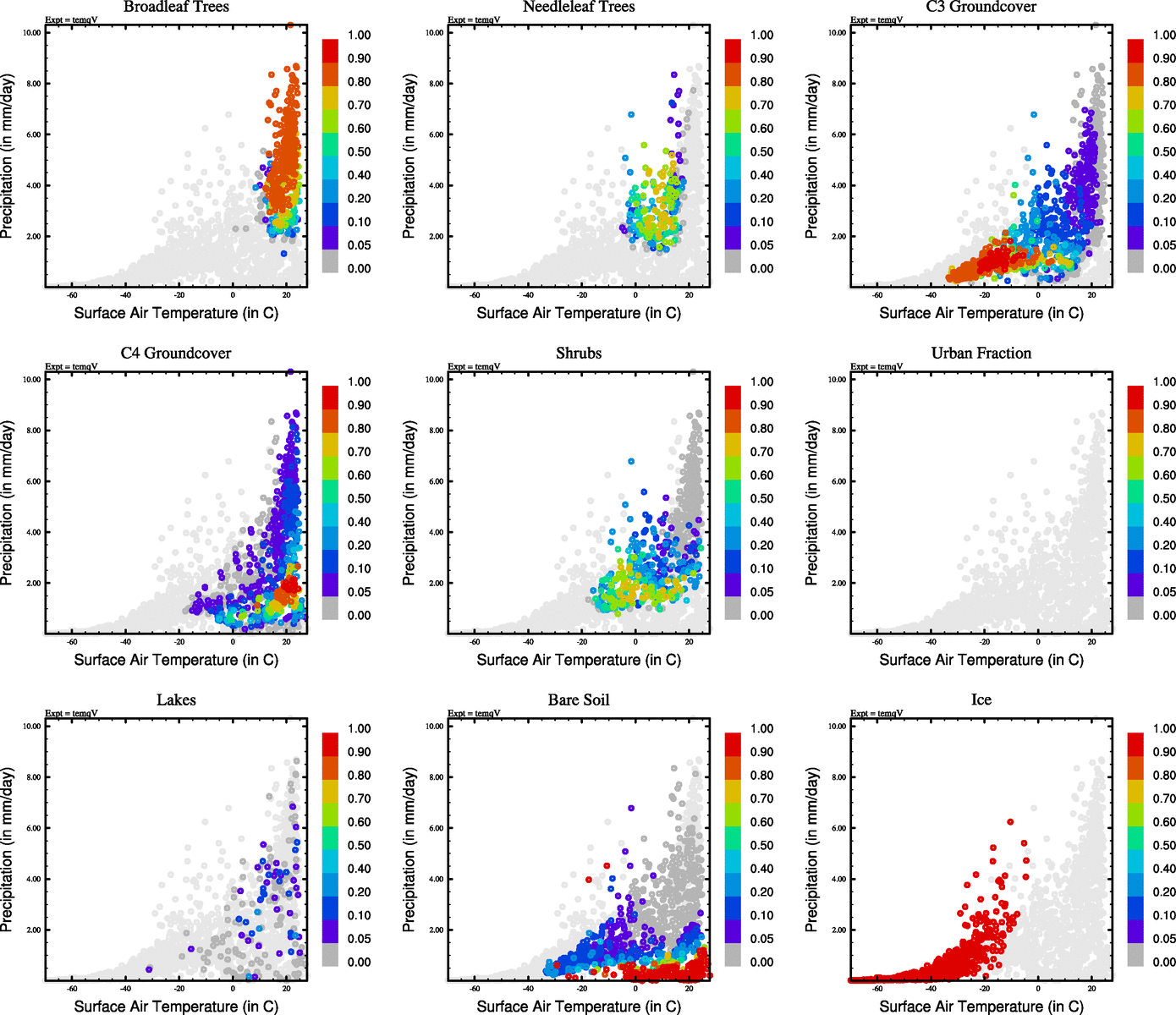

Vegetation-Climate

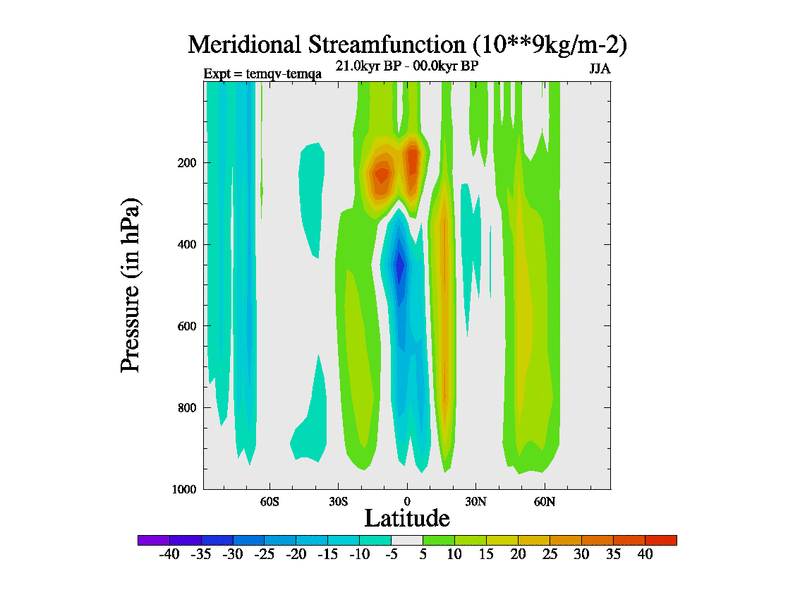

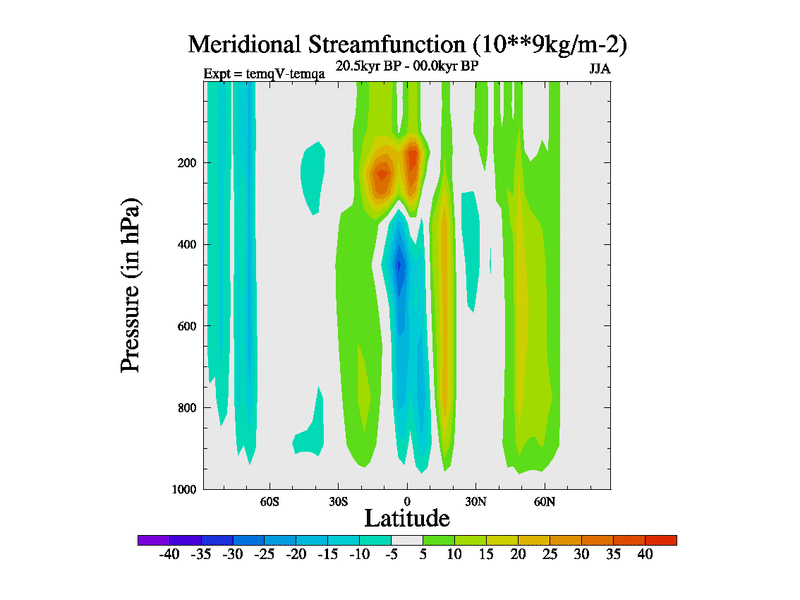

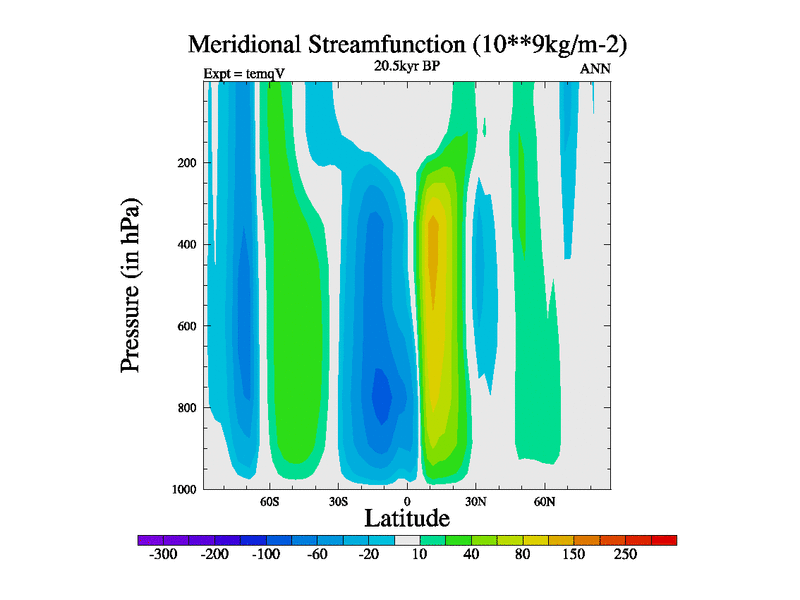

Meridional Stream Function

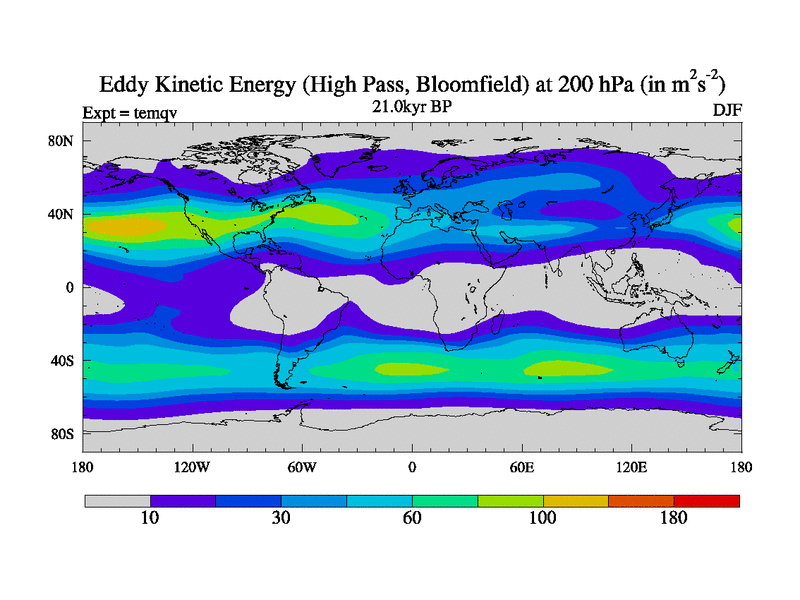

High Pass Eddy Kinetic Energy at 200 hPa

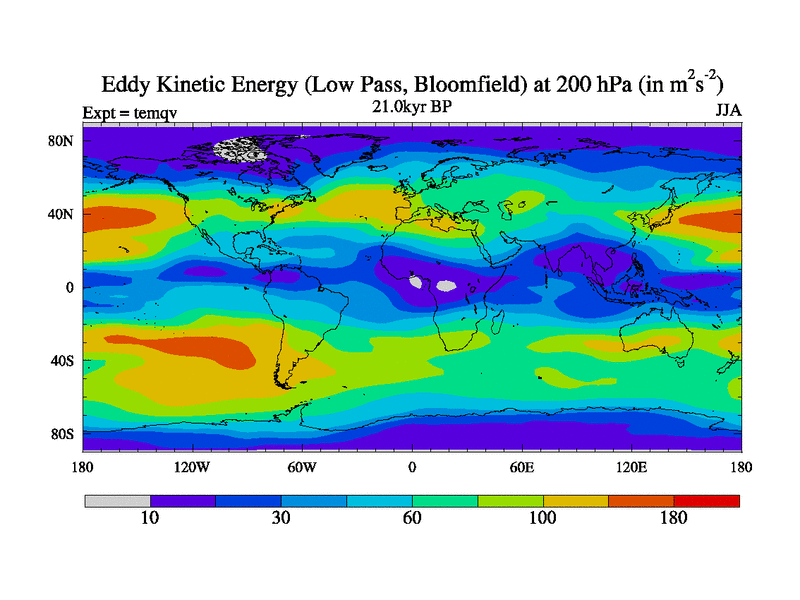

Low Pass Eddy Kinetic Energy at 200 hPa

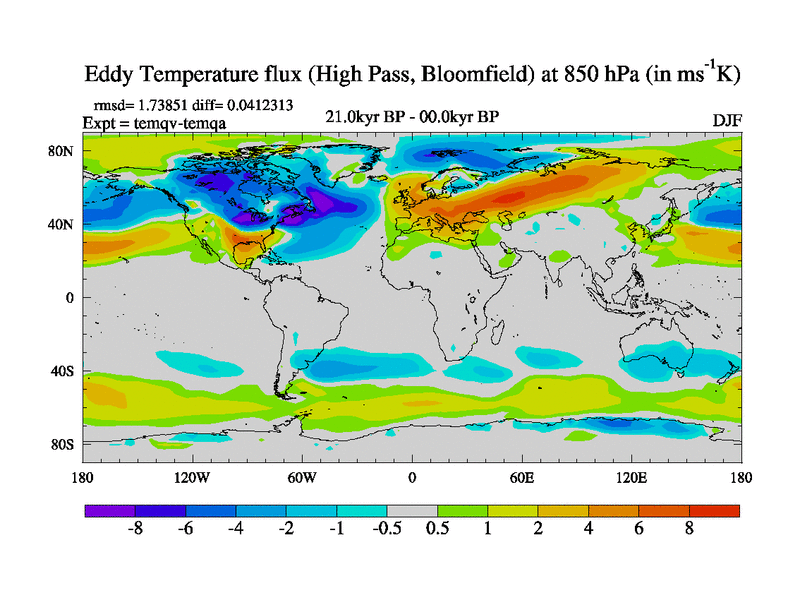

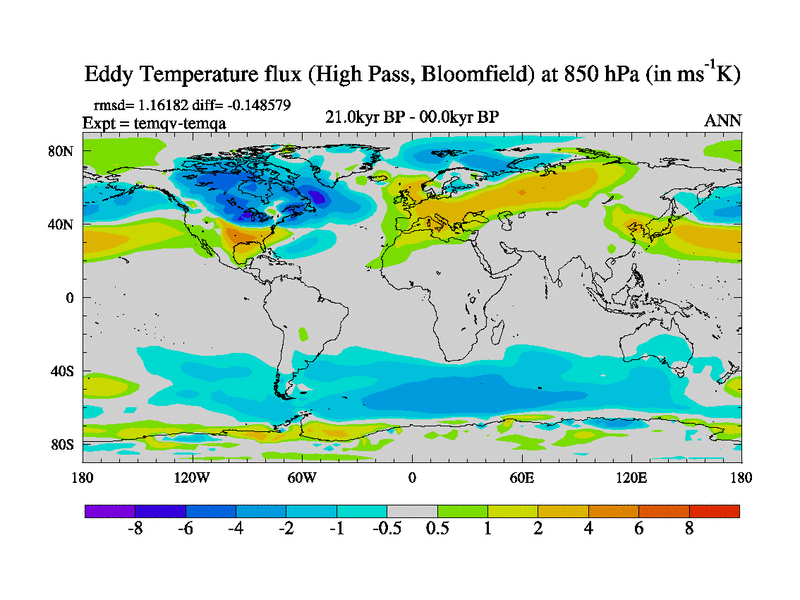

High Pass Temperature Flux at 850 hPa

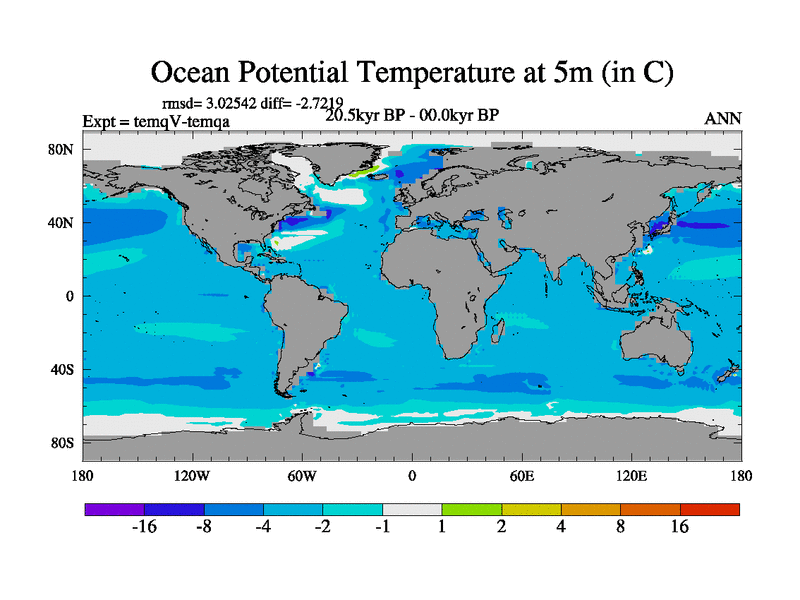

Ocean Potential Temperature at 5m

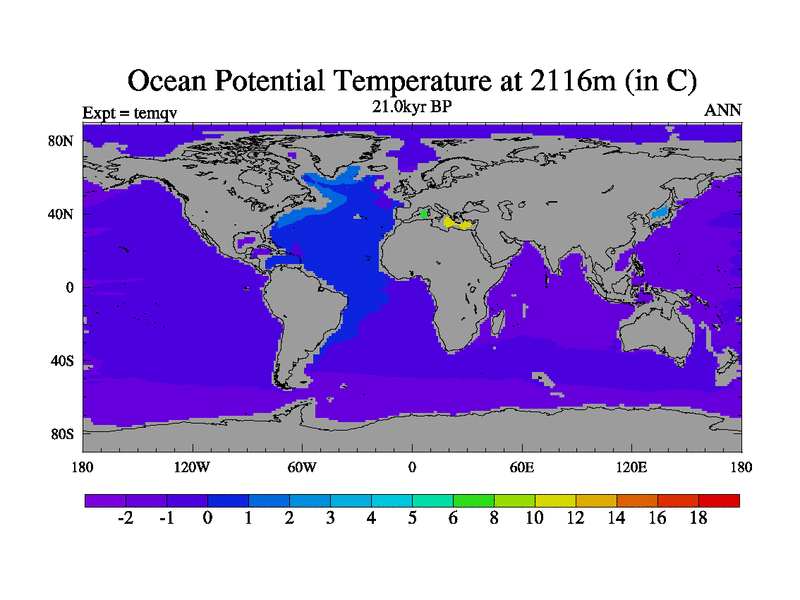

Ocean Potential Temperature at 2116m

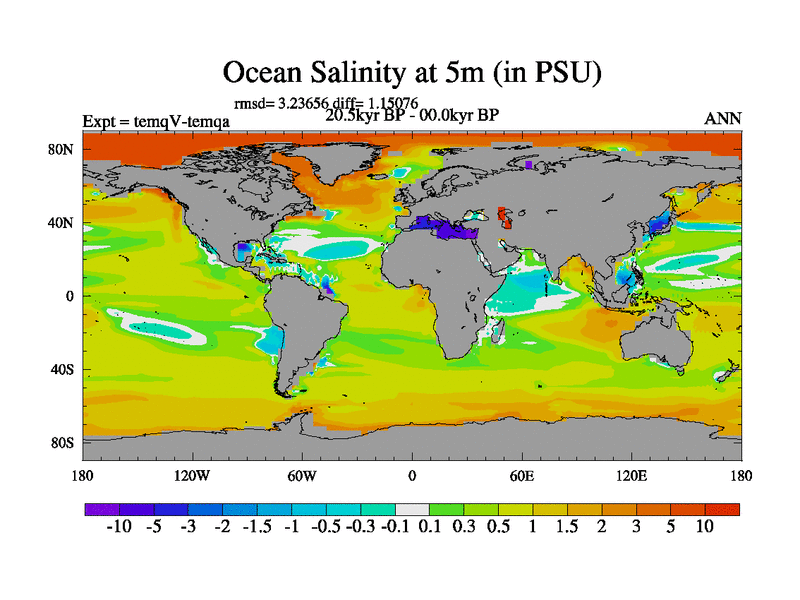

Ocean Salinity at 5m
Ocean Salinity at 2116m

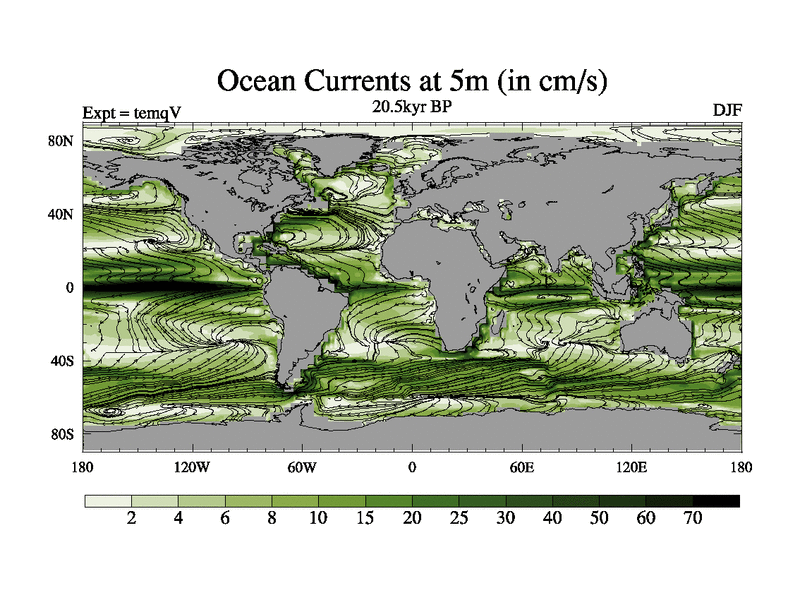

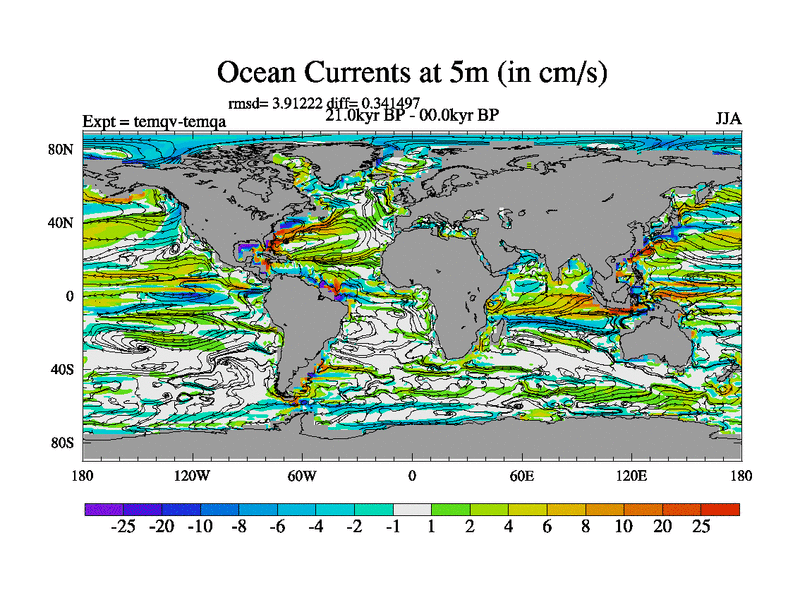

Ocean Currents at 5m

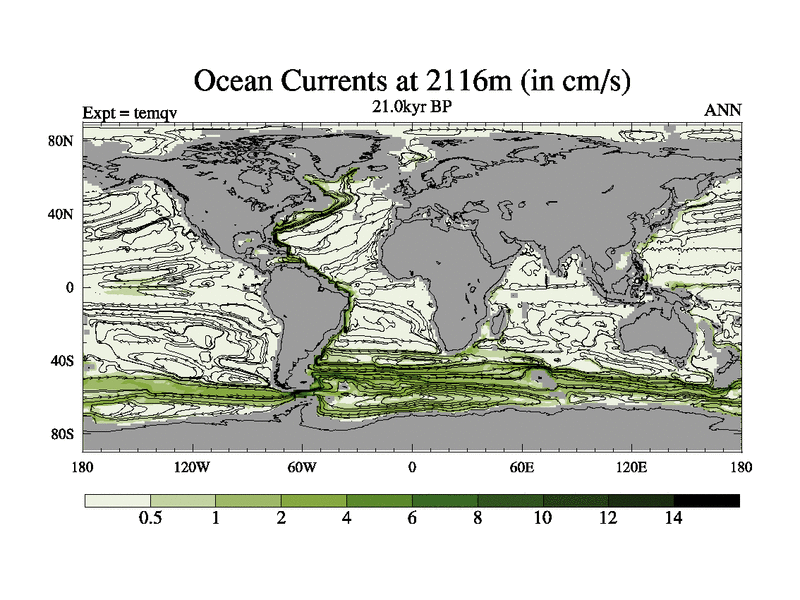

Ocean Currents at 2116m

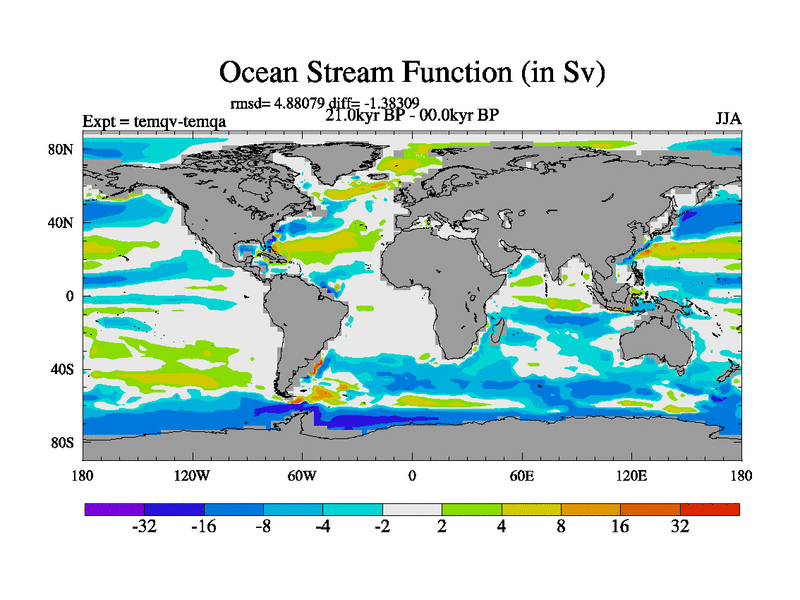

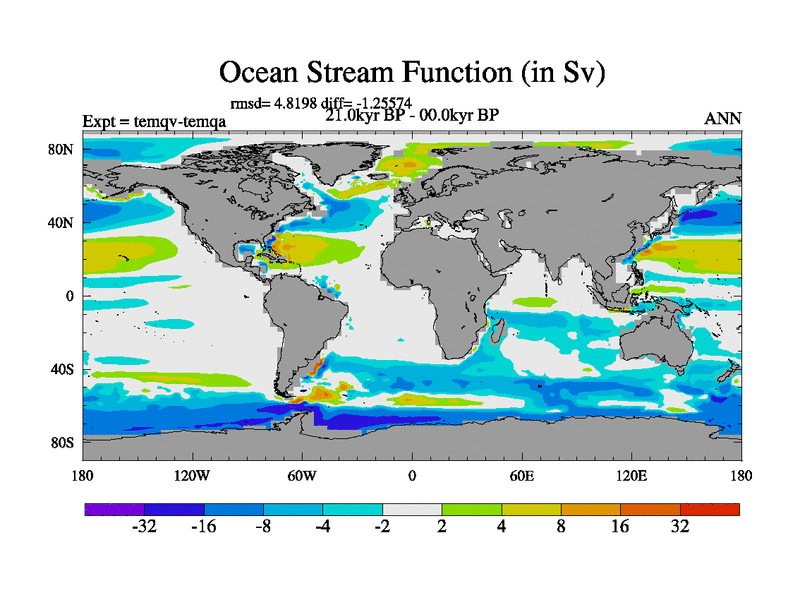

Ocean Horizontal Streamfunction

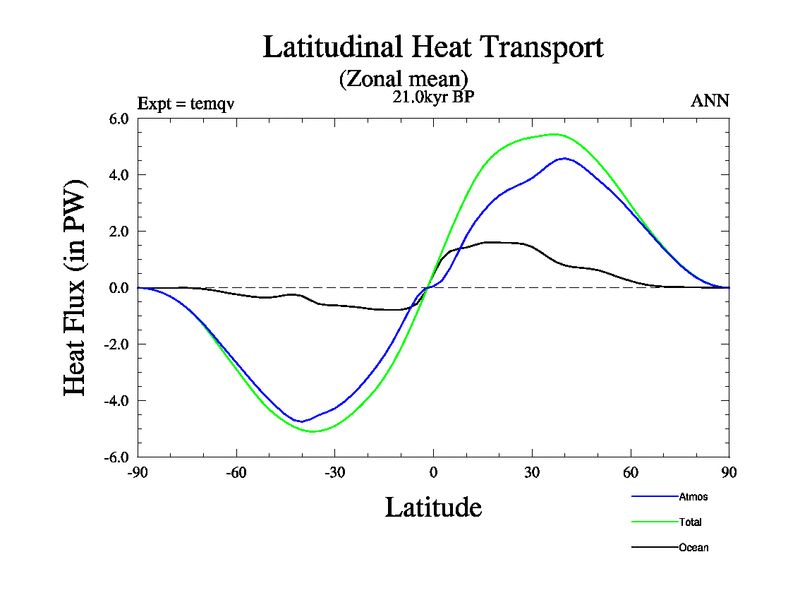

Atmos/Ocean Heat Transport

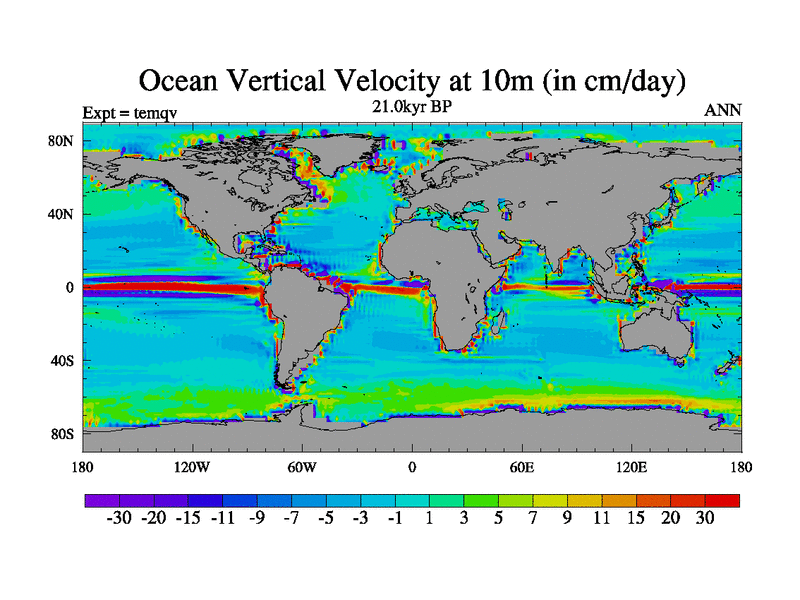

Ocean Vertical Velocity at 10m
Ocean Vertical Velocity at 2424m

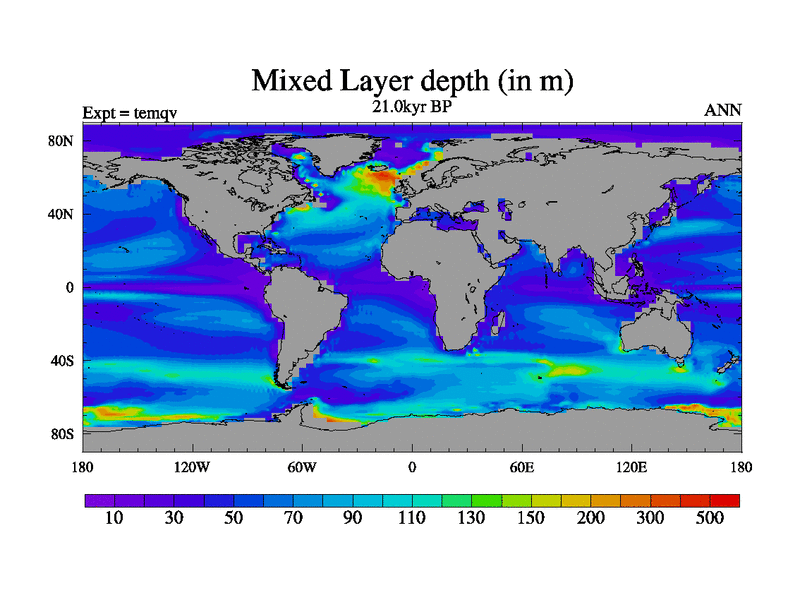

Ocean Mixed Layer Depth
Mass Streamfunction

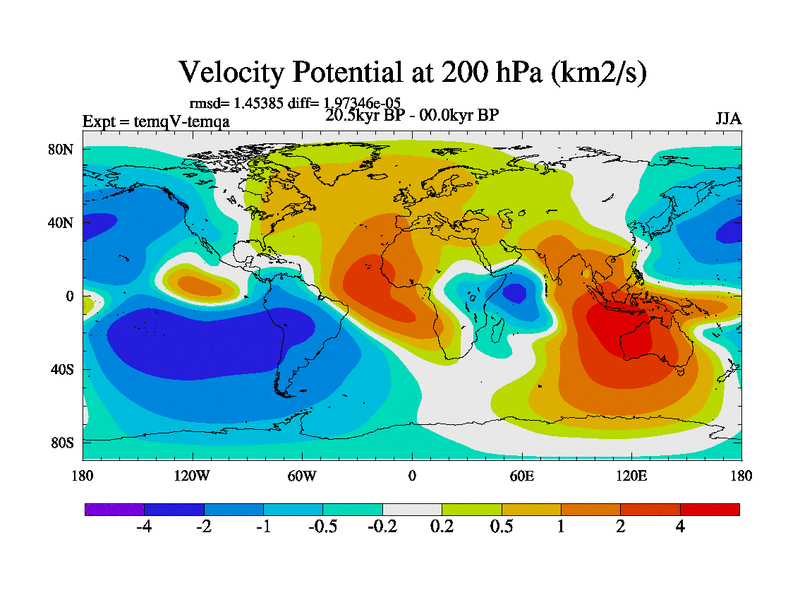

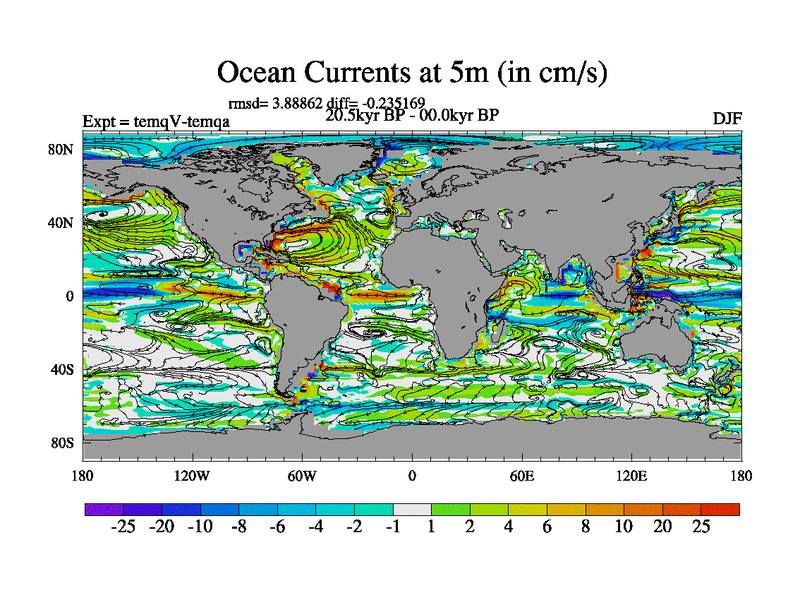

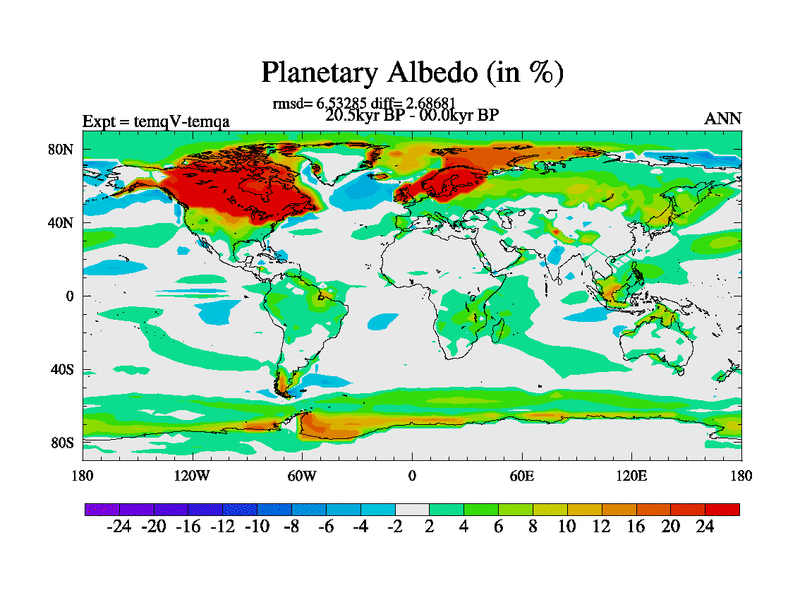

Summary of Results for Experiment temqv-temqa

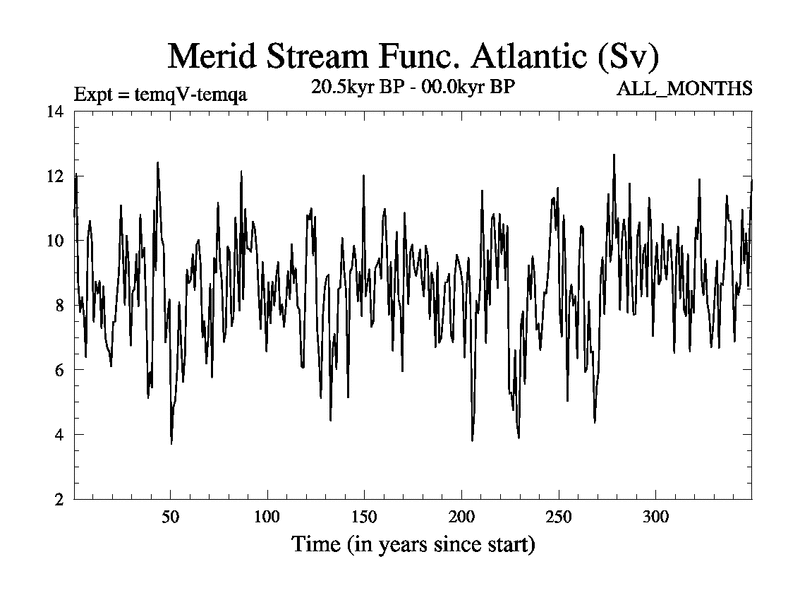

Atlantic Meridional Overturning Strength

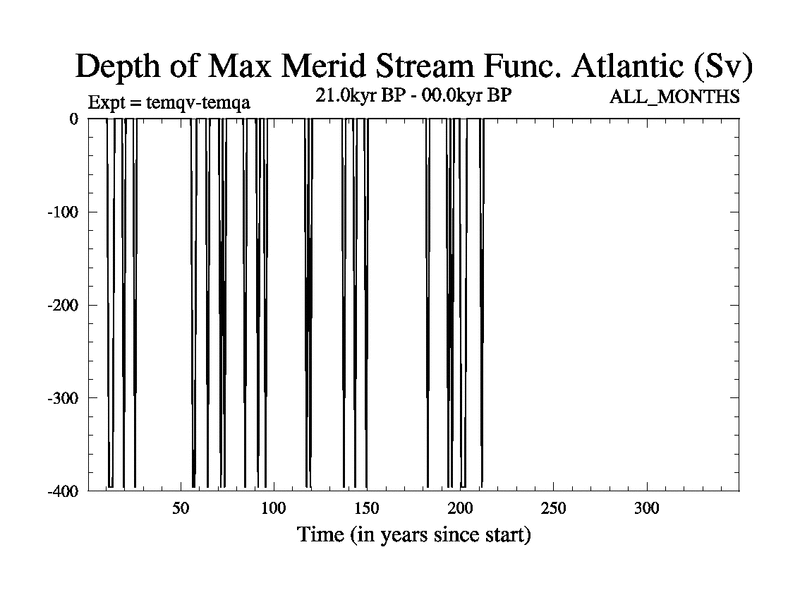

Depth of Max Atlantic Overturning

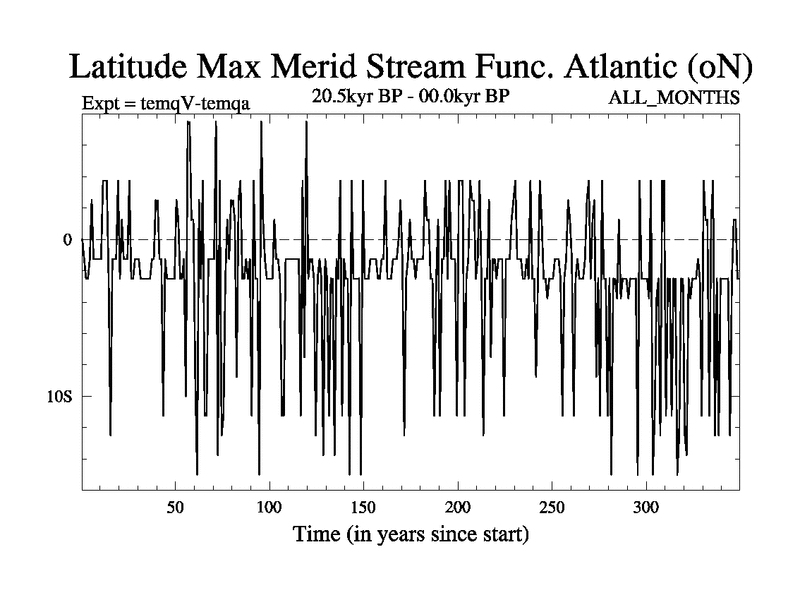

Latitude of Max Atlantic Overturning
Variable
DJF
JJA
ANN
Monthly
Variable

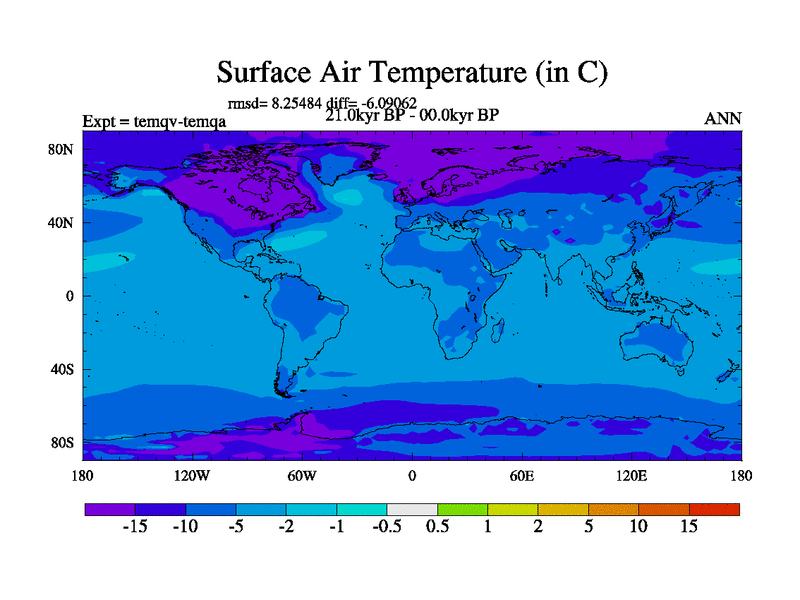

Surface Air Temperature

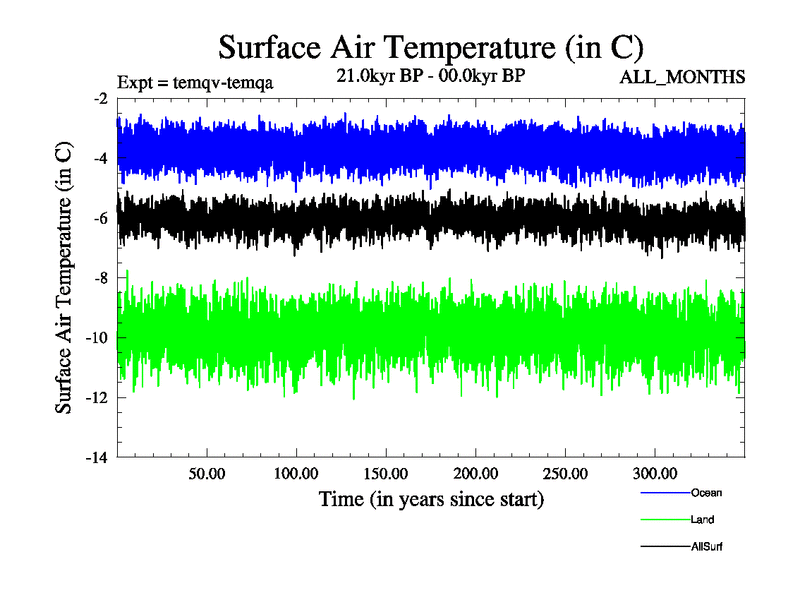

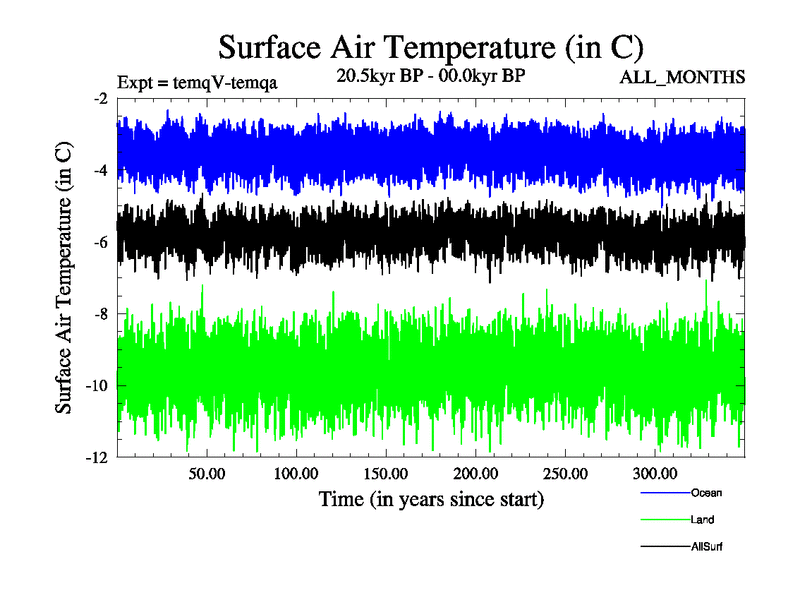

Surface Air Temperature Time Series

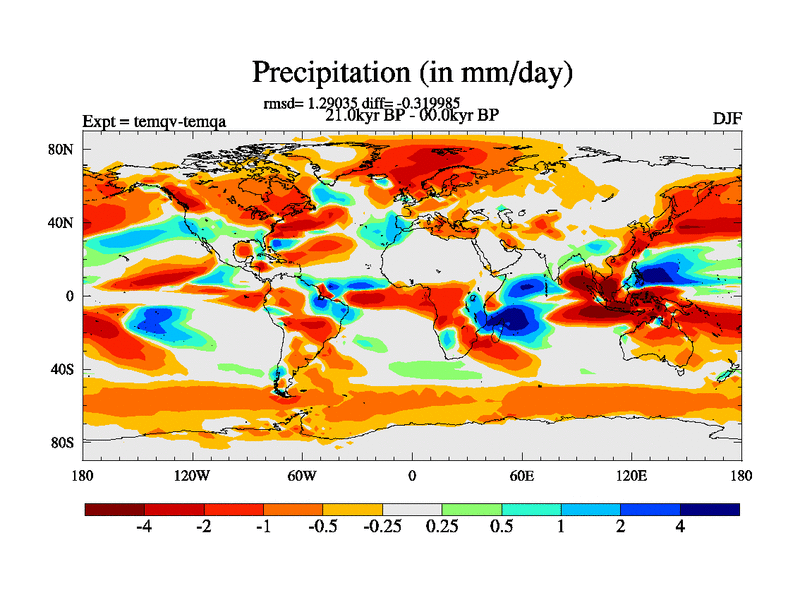

Total Precipitation

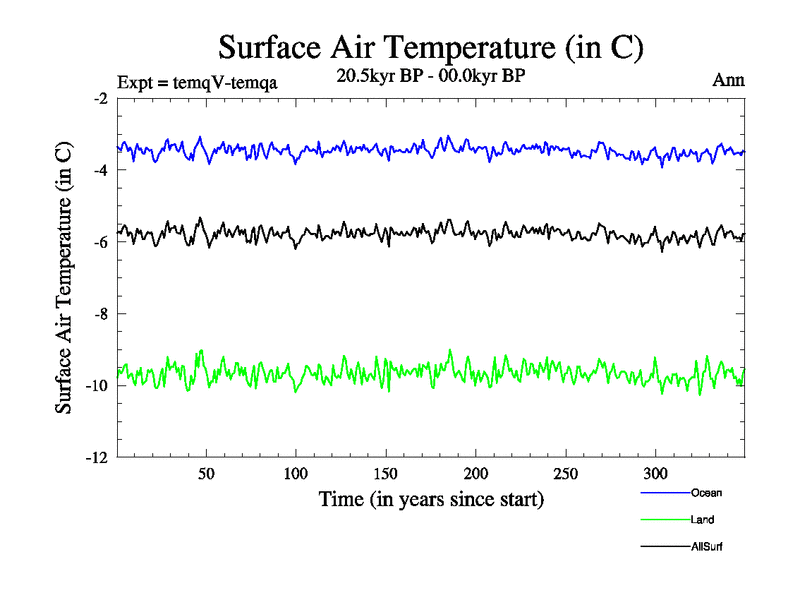

Surface Air Temperature Time Series (annual means)
Evaporation
Soil Moisture in Layer 4 (Deepest layer) (annual means)
