Earth Systems Modelling Results

Bristol Research Initiative for the Dynamic Global Environment

with the

University of Reading, Open University, and the British Antarctic Survey.

Model Simulations

Experiment: tdlhj

This job is stored in swsvalde and represents a BRIDGE standard HadCM3-MOSES2.1 job. It was run on bigblue on Aug 2010 and used 8 processors (NS/2 EW). The latter should not matter but has rarely been tested. The results should be near identical to that run by Dan which was compared to benchmark results from the Hadley Centre themselves (PMIP2). This is identical to tcywb but with equilibrium TRIFFID turned on. This is a continuation of tdfma, for another 200 years from 3850.

Brief Description Fuller Description Total Length of Run (in years) Averaging period (in years) Spinup period (in years) CO2 (in ppmv) CH4 (in ppbv) N2O (in ppbv) CFC11 (in pptv) CFC12 (in pptv) Computer used for simulation Compiler used for simulation Date of first entry in datebase Date of most recent modification to entry in database
HadCM3M2.1_Benchmark This job is stored in swsvalde and represents a BRIDGE standard HadCM3-MOSES2.1 job. It was run on bigblue on Aug 2010 and used 8 processors (NS/2 EW). 200 50 3970 280 760 270 0 0 bigblue Intel_v10.1 2013_05_02_12_31 2013_05_02_12_31
You can access the means from this run, by going here
You can access the ocean integrals from this run, by going here


This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system



Summary of Results for Experiment tdlhj

Atlantic Meridional Overturning StrengthDepth of Max Atlantic OverturningLatitude of Max Atlantic Overturning

Variable

DJFJJAANNMonthlyVariable

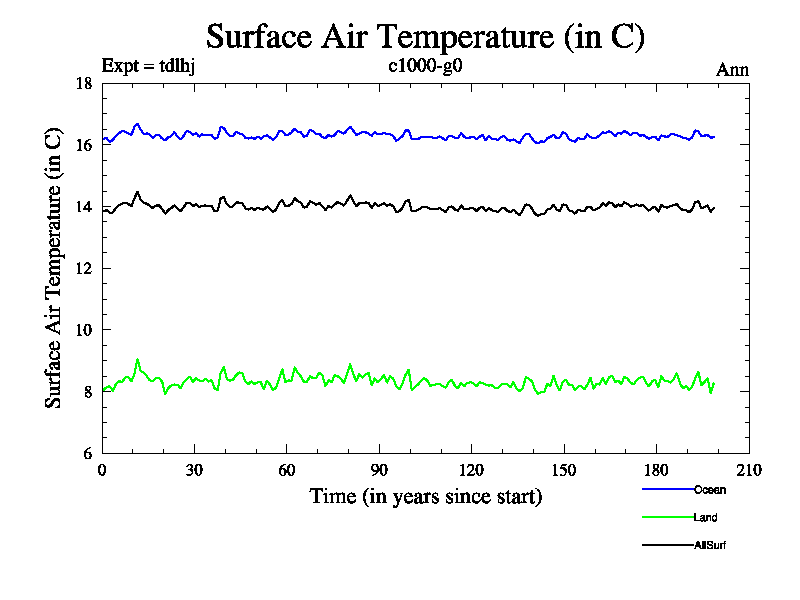

Surface Air TemperatureSurface Air Temperature Time Series
Total PrecipitationSurface Air Temperature Time Series (annual means)

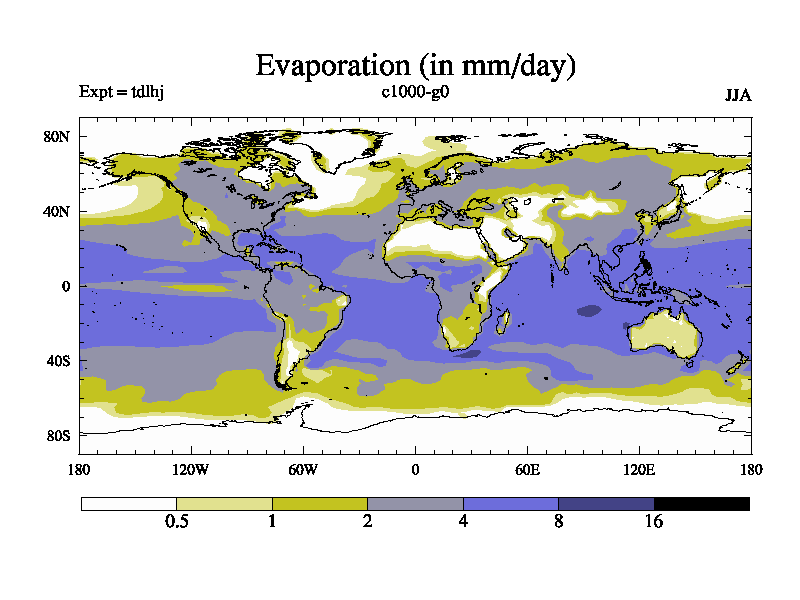

EvaporationSoil Moisture in Layer 4 (Deepest layer)
Precipitation - EvaporationSoil Moisture in Layer 4 (Deepest layer) (annual means)
Fractional Plant Stress (layer 1)BIOME4
Mean Sea Level PressureBIOME4 with CO2 changed
Total Cloud Cover
Plantary AlbedoWarm Month Mean
Surface AlbedoCold Month Mean
Sea Ice Concentration
Stream Function at 200 hPa
Velocity Potential at 200 hPaVegetation Fractions

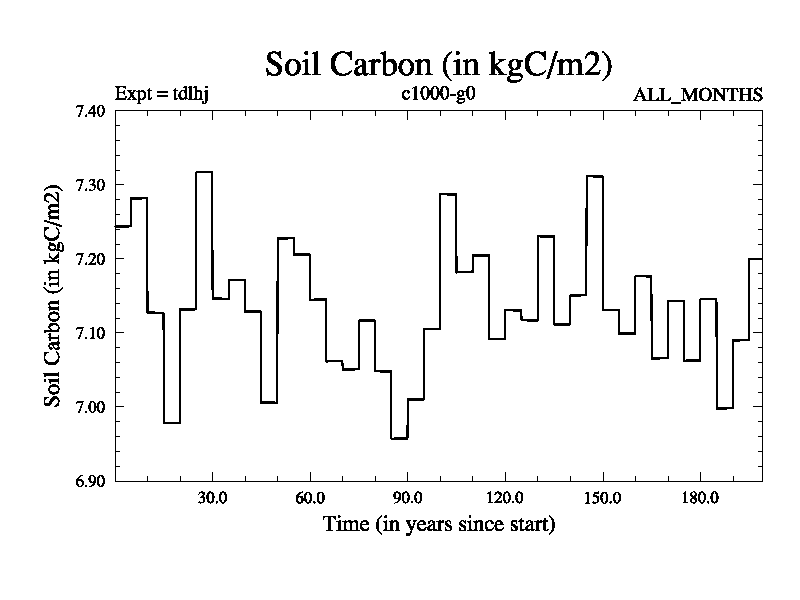

Divergence (Smoothed) at 200 hPaSoil Carbon Time Series
Perturbation Height at 500 hPa
Meridional Stream Function
Ocean Potential Temperature at 5mOcean Potential Temperature at 2116m
Ocean Salinity at 5mOcean Salinity at 2116m
Ocean Currents at 5mOcean Currents at 2116m
Ocean Vertical Velocity at 10m
Ocean Mixed Layer DepthMass Streamfunction
