Model Simulations

Experiment: tcvun

Parameters are perturbed as following, RHCRIT 0.6225, VF1 1.941, CT 0.0002942, CW_LAND 0.001931, CW_SEA 0.0004825, Z0FSEA 0.002321, KAY_GWAVE 1.213e+004, KAY_LEE_GWAVE 1.819e+005, ALPHAM 0.3058, DIFF_COEFF 3.617e+009, DIFF_COEFF_Q 2.068e+008, FNUB_SI 1.028e-005, KAPPA0_SI 1.028e-005, DKAPPA_DZ_SI 2.869e-008, FNU0_SI 0.005798, AM0_SI 1.372e+005, AM1_SI 1.372e+005, AHI1_SI 914.7, AHI2_SI 914.7, ATHKDF1_SI 914.7, ATHKDF2_SI 914.7.
Brief Description Fuller Description Total Length of Run (in years) Averaging period (in years) Spinup period (in years) CO2 (in ppmv) CH4 (in ppbv) N2O (in ppbv) CFC11 (in pptv) CFC12 (in pptv) Computer used for simulation Compiler used for simulation Date of first entry in datebase Date of most recent modification to entry in database
FAMOUS_2xCO2_14 part of the tuning of FAMOUS. Simulation number 14 of 2xCO2. The control run is tcmuf. The corresponding Present day run is tcrun. 200 30 170 579 790 285 0 0 bigblue Intel_v10.1 2010_02_18_17_45 2011_01_25_11_20
You can access the means from this run, by going here
You can access the ocean integrals from this run, by going here

This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system

Summary of Results for Experiment tcvun

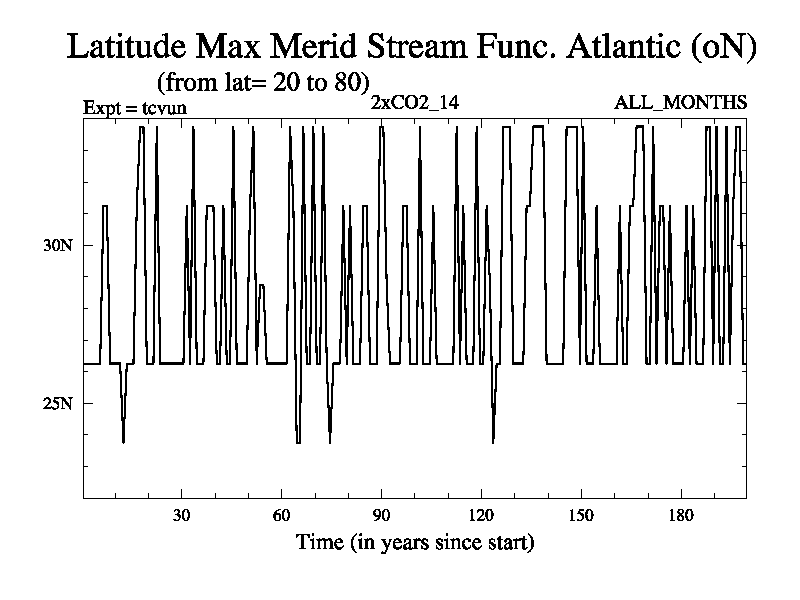

Atlantic Meridional Overturning StrengthDepth of Max Atlantic OverturningLatitude of Max Atlantic Overturning

Variable

DJFJJAANNMonthlyVariable
Surface Air TemperatureSurface Air Temperature Time Series

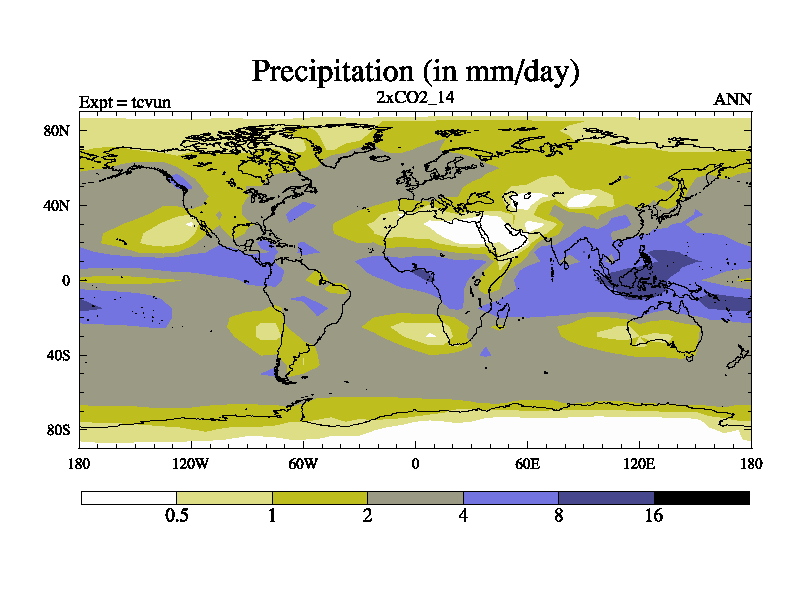

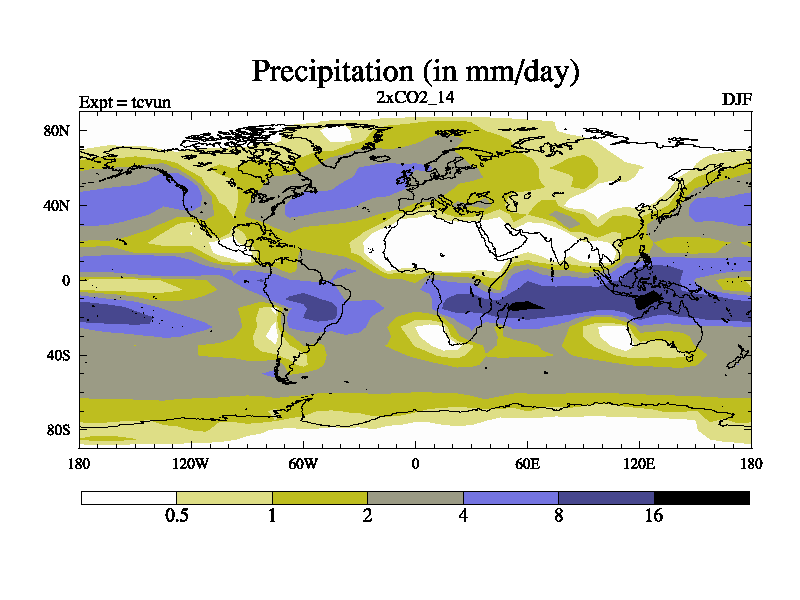

Total PrecipitationSurface Air Temperature Time Series (annual means)
EvaporationSoil Moisture in Layer 4 (Deepest layer)
Precipitation - EvaporationSoil Moisture in Layer 4 (Deepest layer) (annual means)
Fractional Plant Stress (layer 1)BIOME4

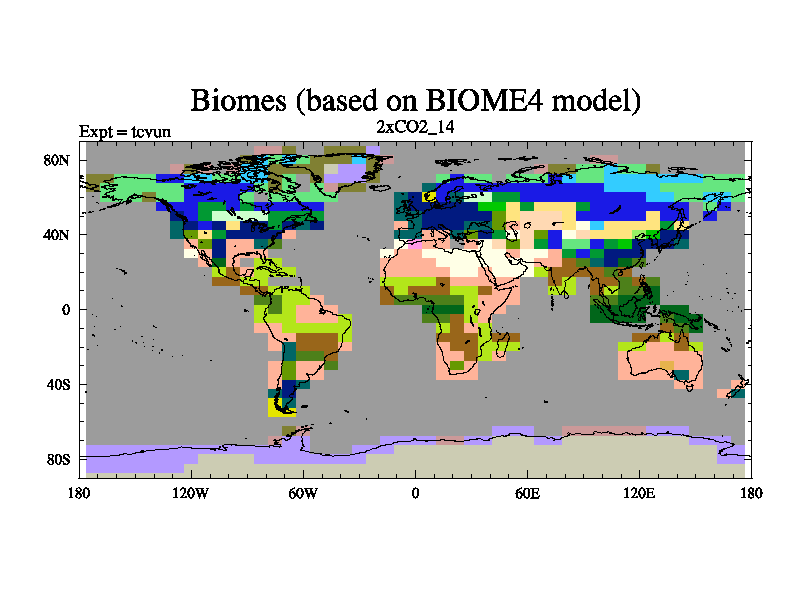

Mean Sea Level PressureBIOME4 with CO2 changed

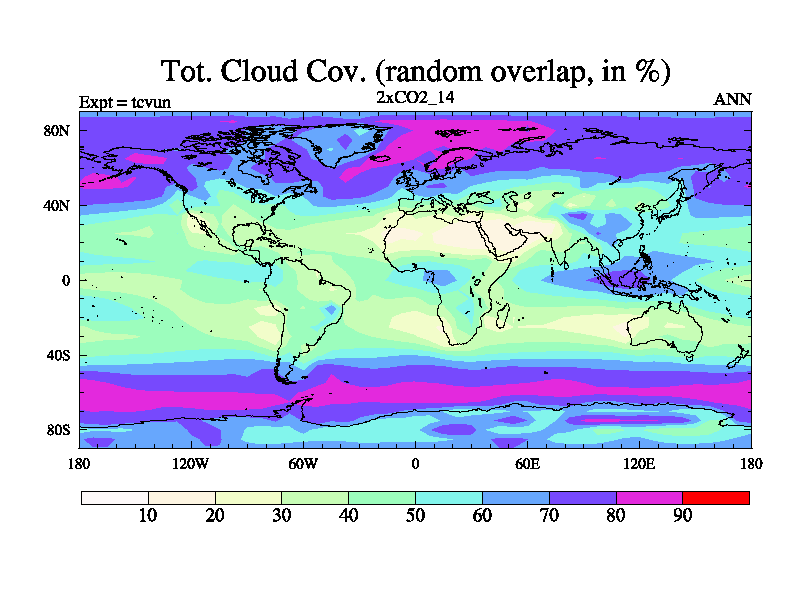

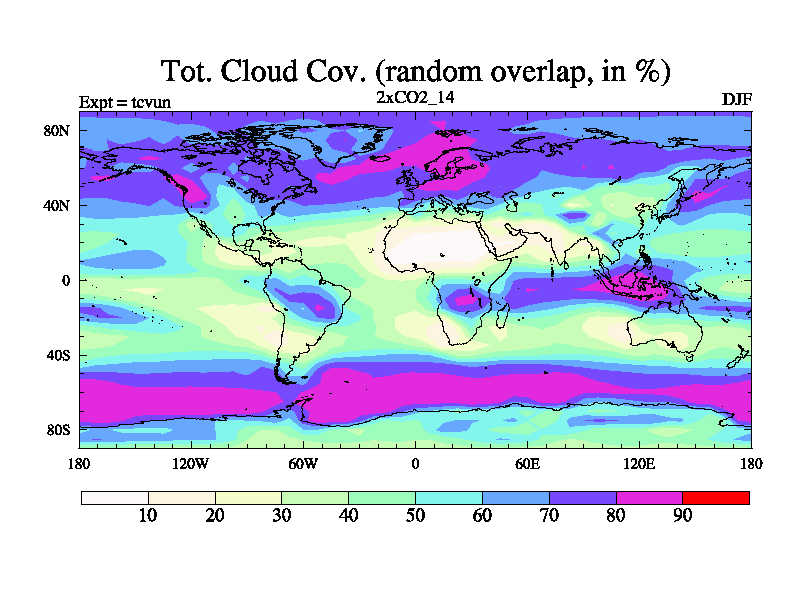

Total Cloud Cover
Plantary AlbedoWarm Month Mean

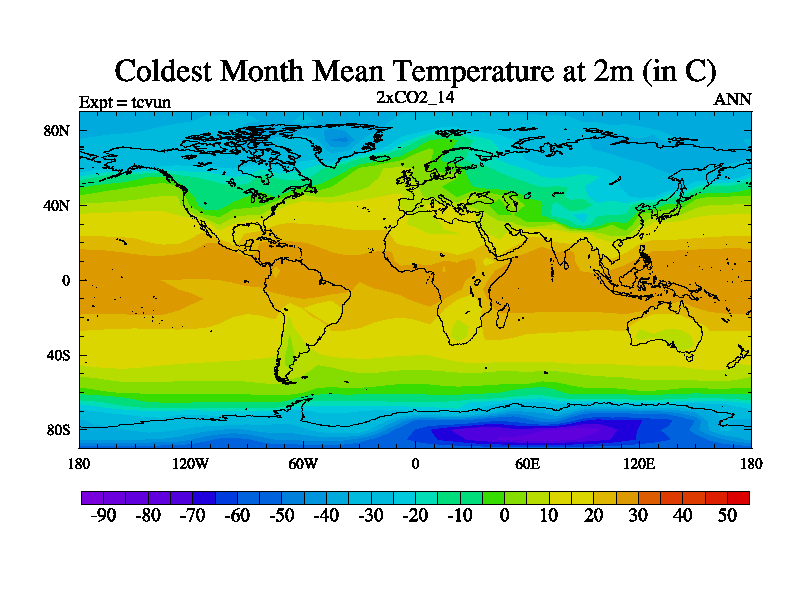

Surface AlbedoCold Month Mean

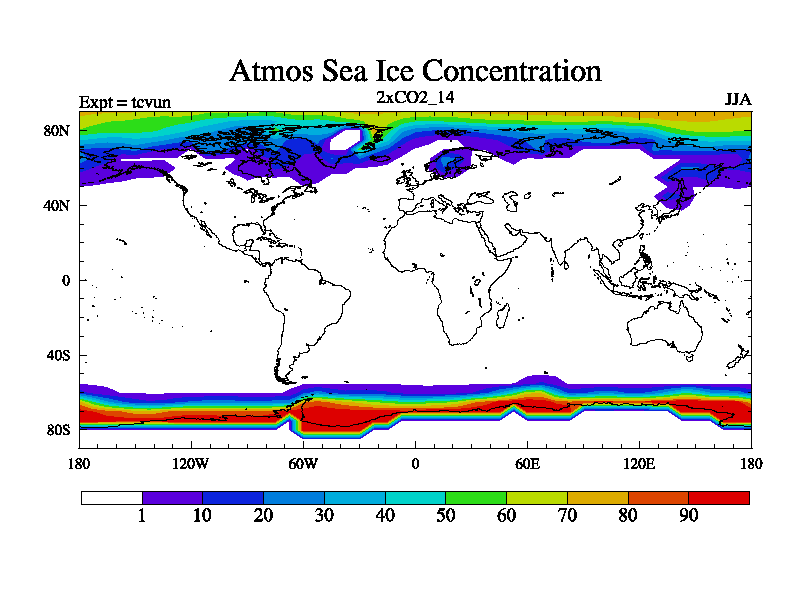

Sea Ice Concentration
Perturbation Height at 500 hPa
Meridional Stream Function

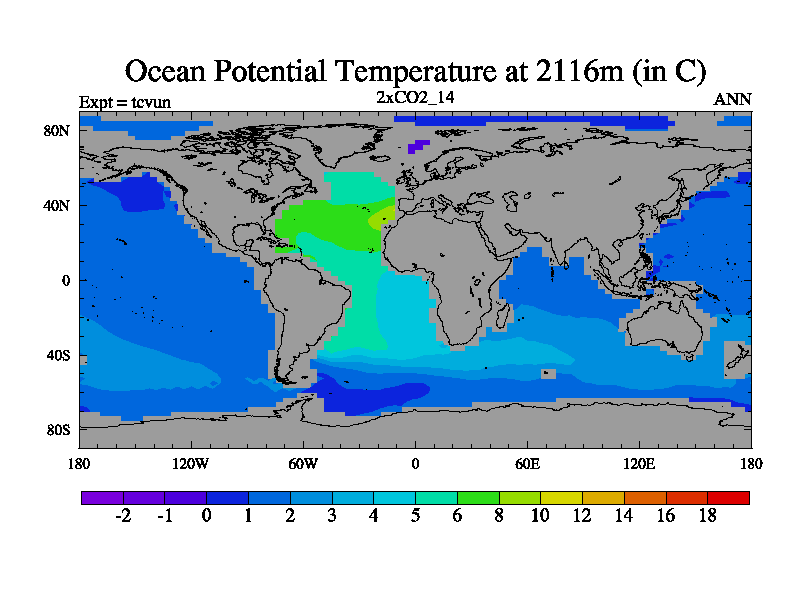

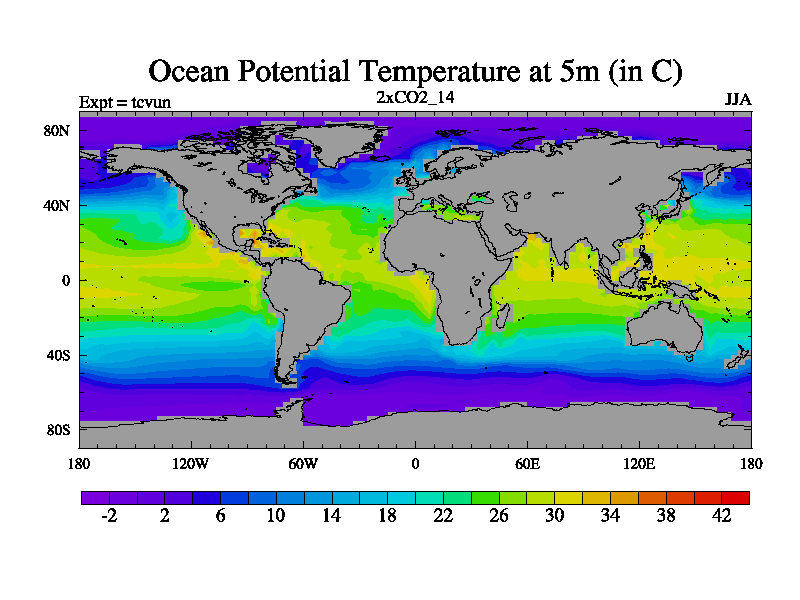

Ocean Potential Temperature at 5mOcean Potential Temperature at 2116m
Ocean Salinity at 5mOcean Salinity at 2116m

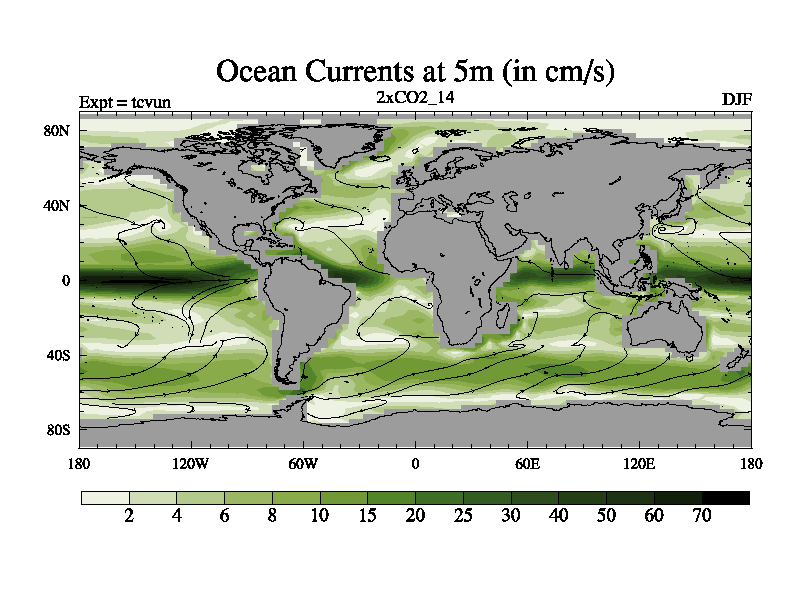

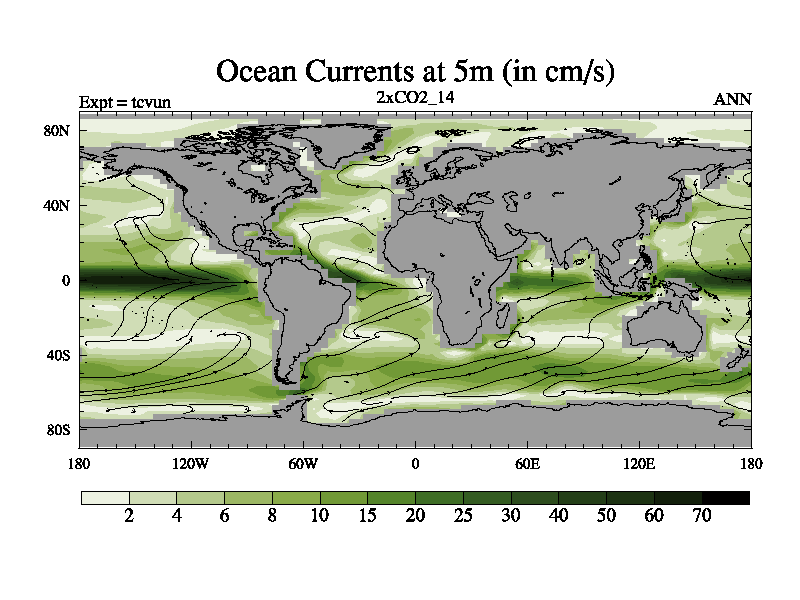

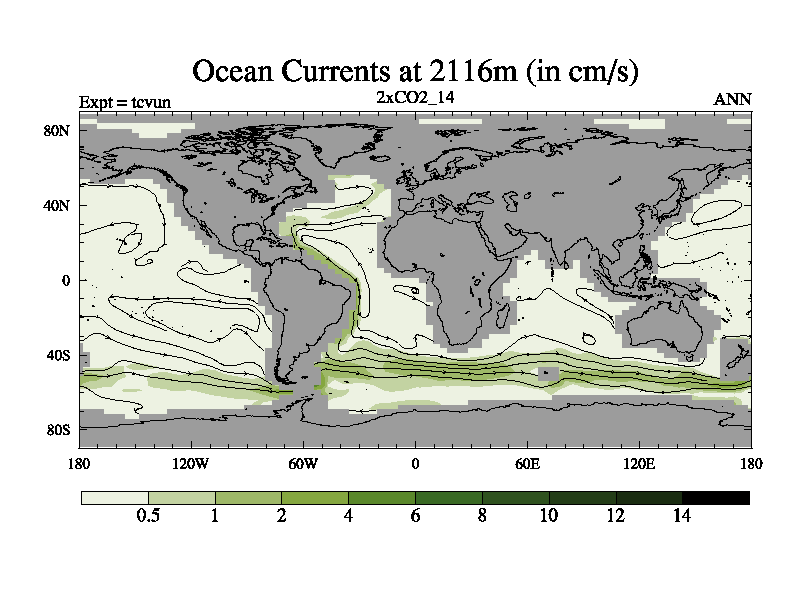

Ocean Currents at 5mOcean Currents at 2116m

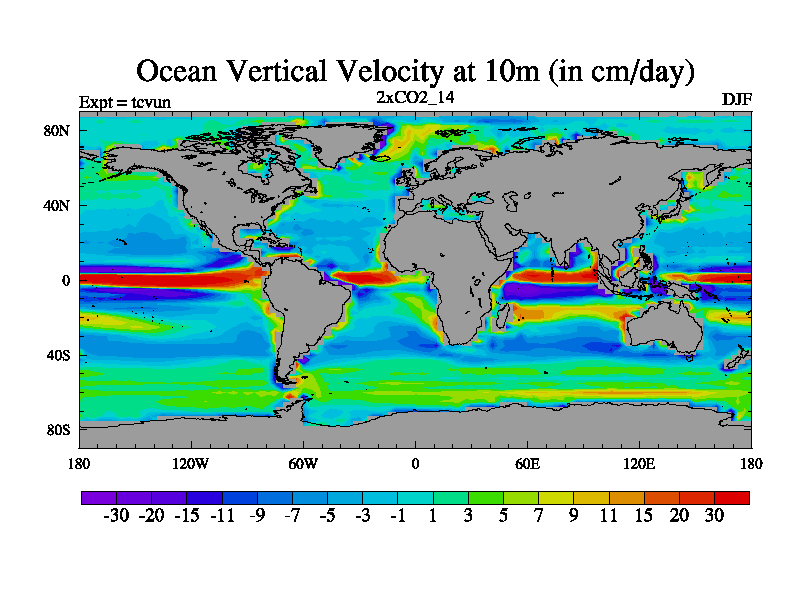

Ocean Vertical Velocity at 10m

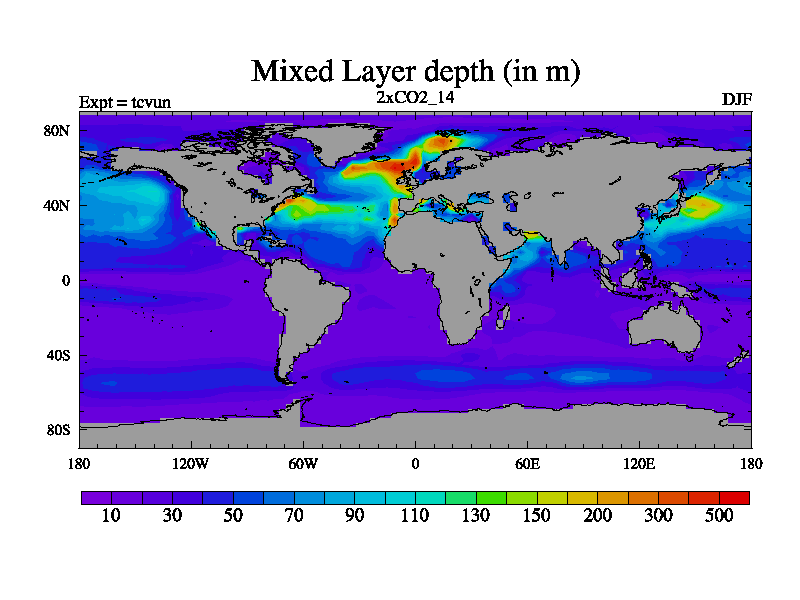

Ocean Mixed Layer DepthMass Streamfunction

Summary of Results for Experiment tcvun-tcmuf

Ocean Mixed Layer DepthAtlantic Meridional Overturning StrengthDepth of Max Atlantic OverturningLatitude of Max Atlantic Overturning

Variable

DJFJJAANNMonthlyVariable

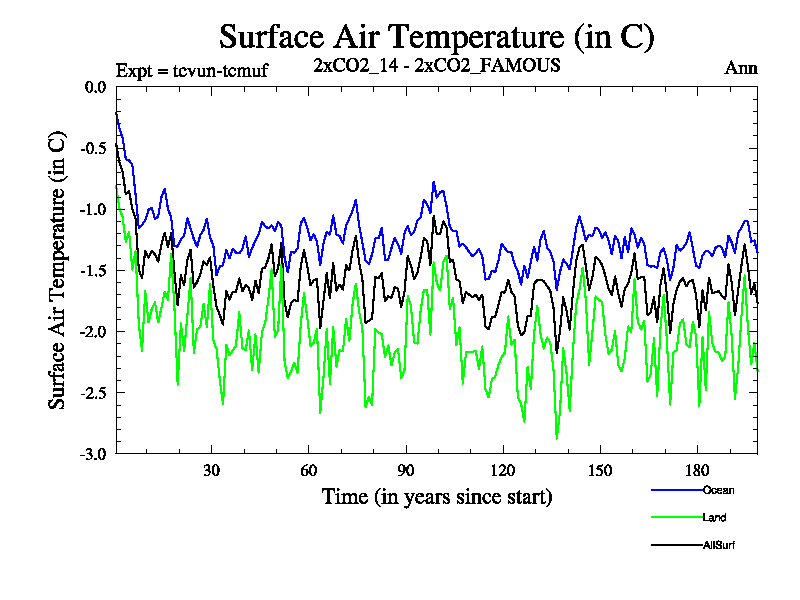

Surface Air TemperatureSurface Air Temperature Time Series

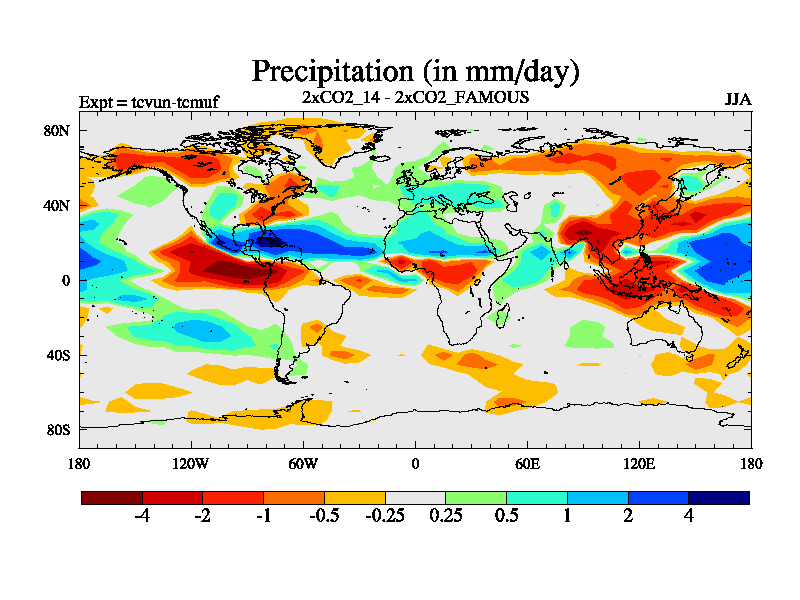

Total PrecipitationSurface Air Temperature Time Series (annual means)

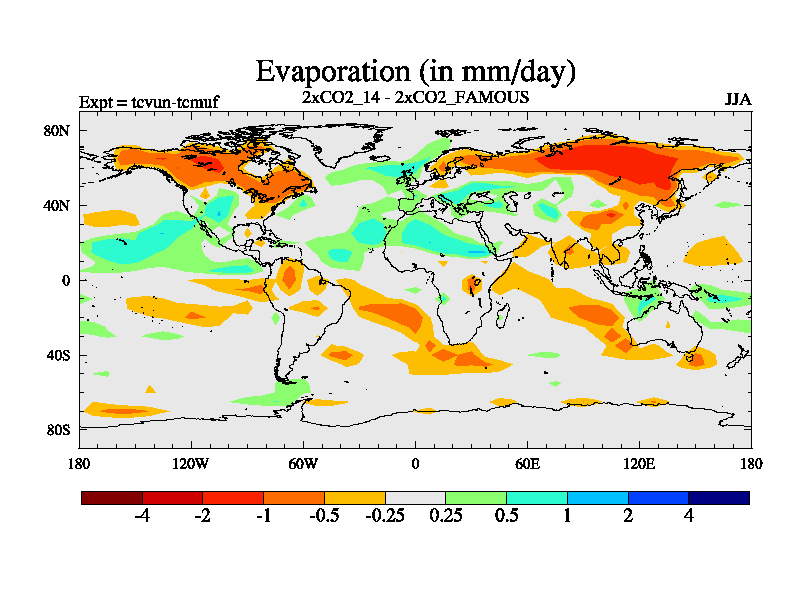

EvaporationSoil Moisture in Layer 4 (Deepest layer)

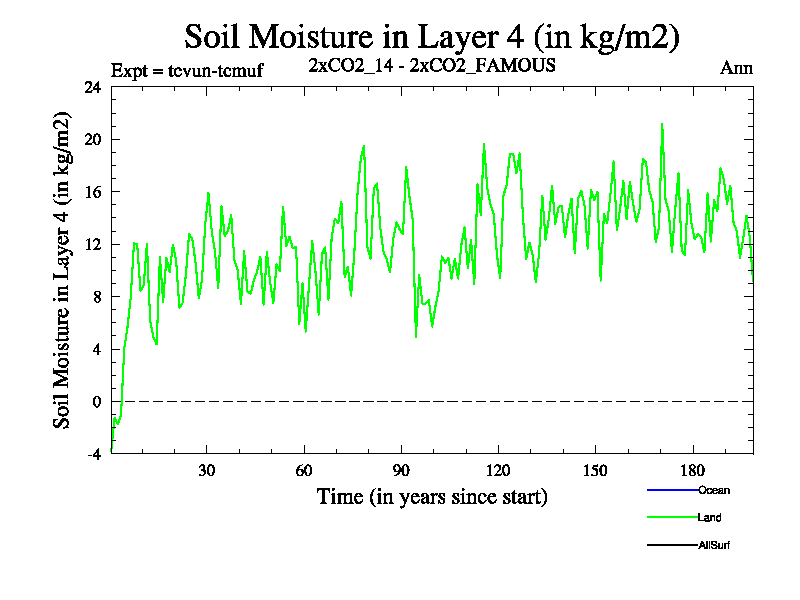

Precipitation - EvaporationSoil Moisture in Layer 4 (Deepest layer) (annual means)

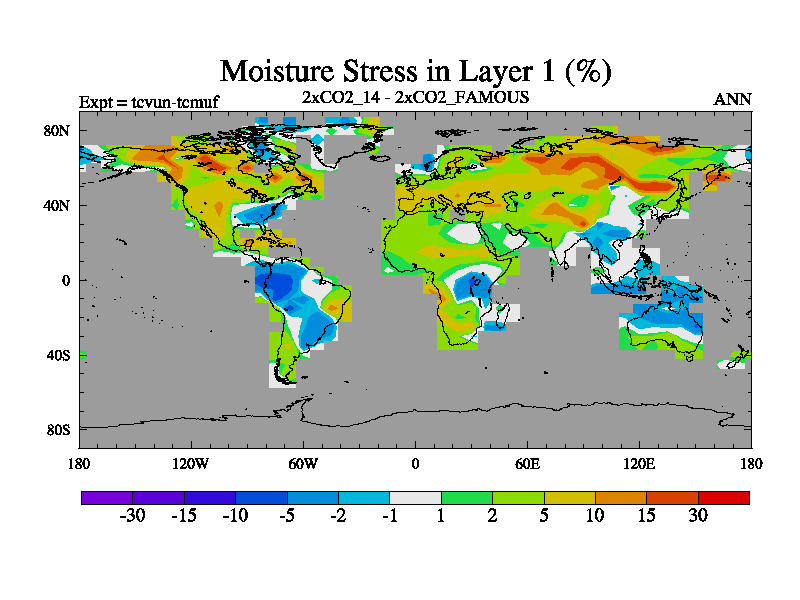

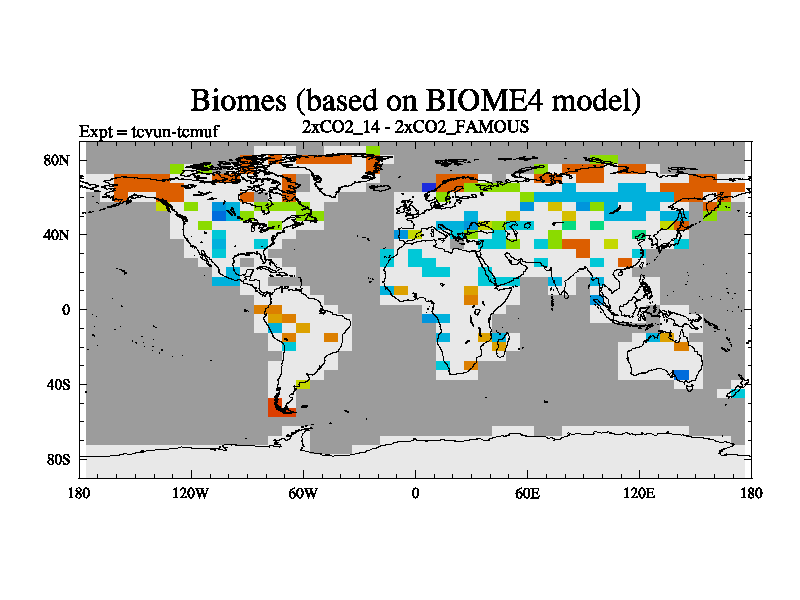

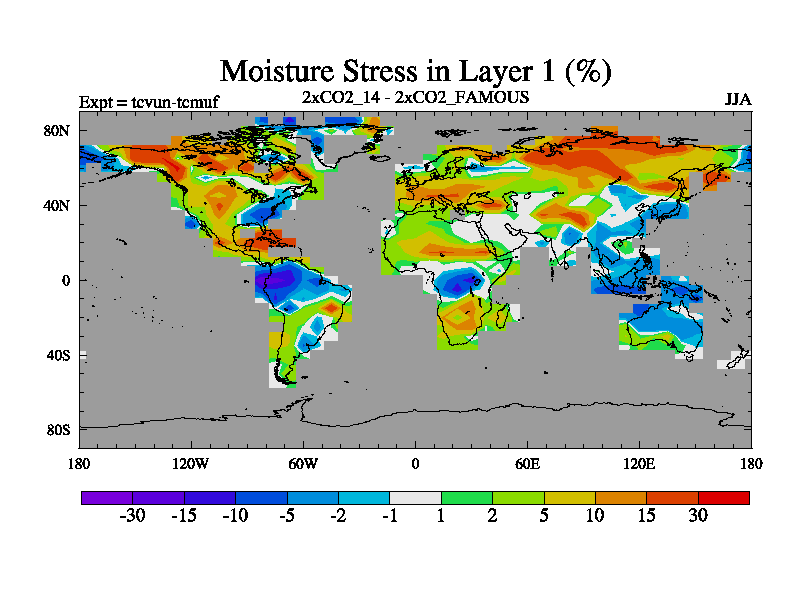

Fractional Plant Stress (layer 1)BIOME4

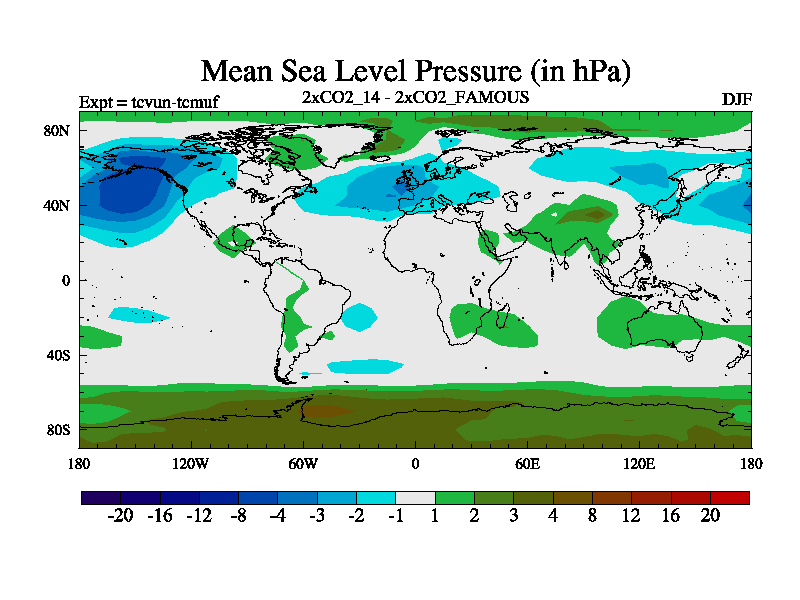

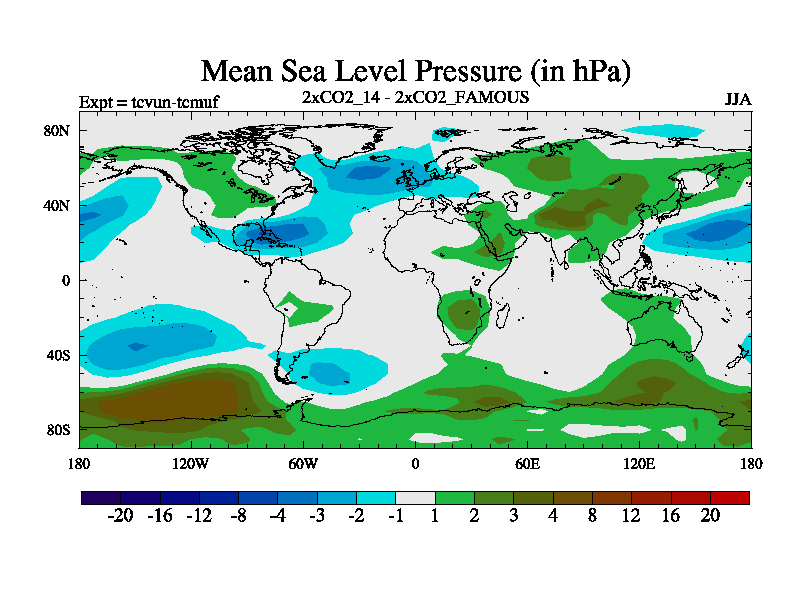

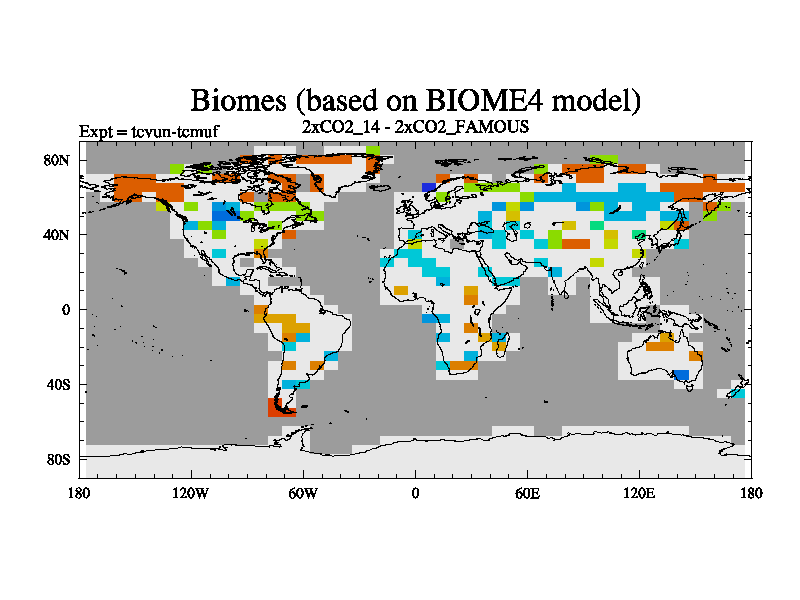

Mean Sea Level PressureBIOME4 with CO2 changed

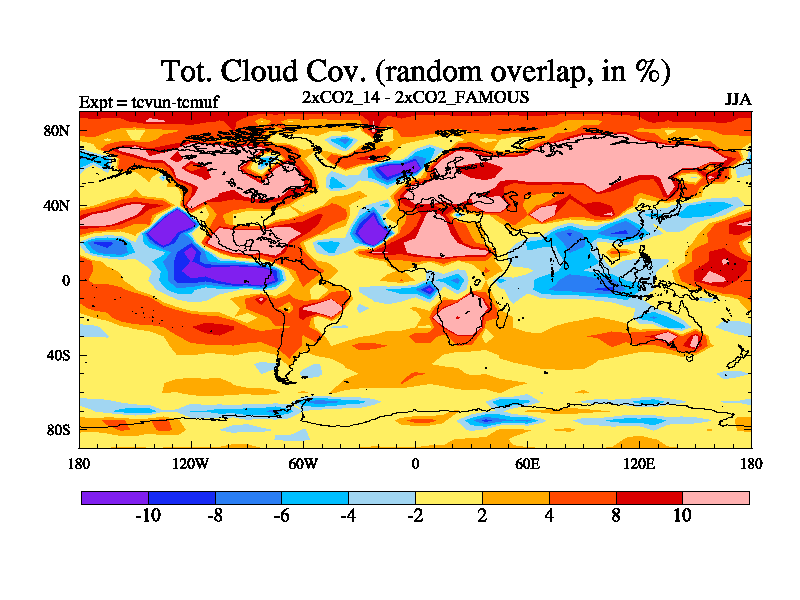

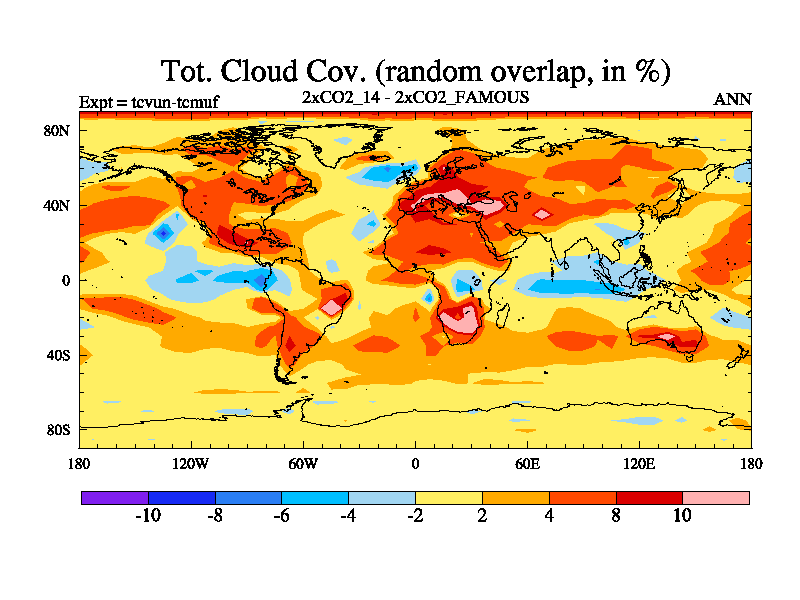

Total Cloud Cover

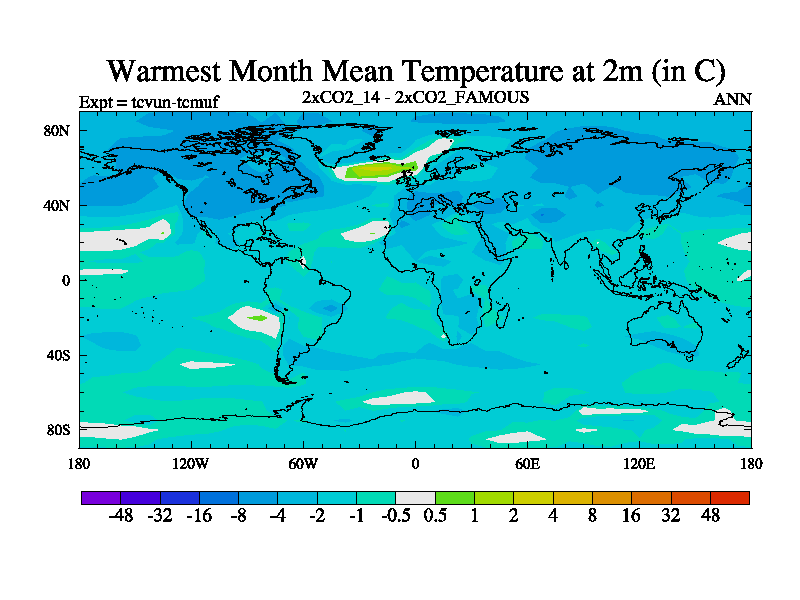

Plantary AlbedoWarm Month Mean
Surface AlbedoCold Month Mean

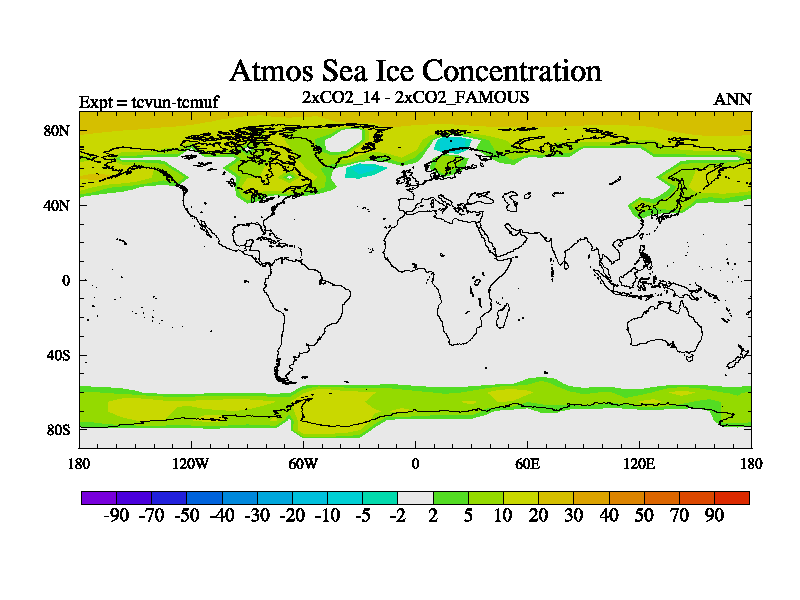

Sea Ice Concentration
Perturbation Height at 500 hPa
Meridional Stream Function

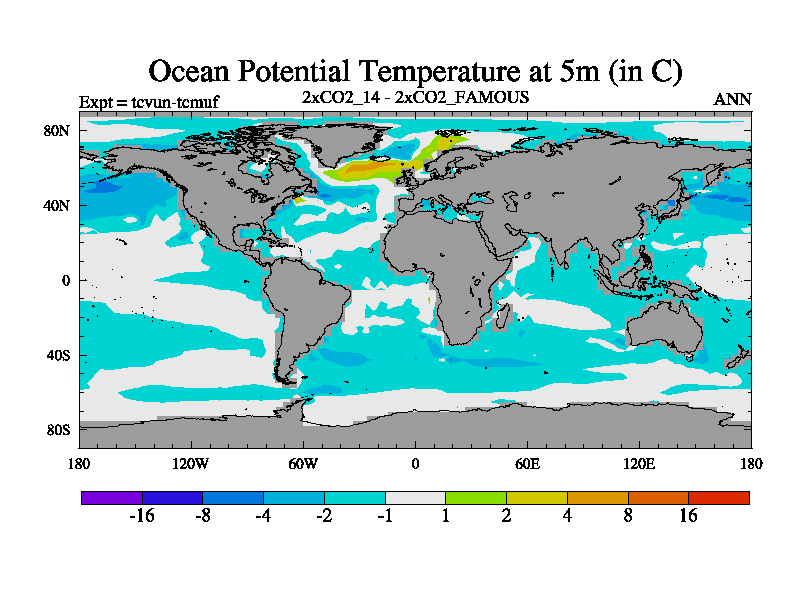

Ocean Potential Temperature at 5mOcean Potential Temperature at 2116m

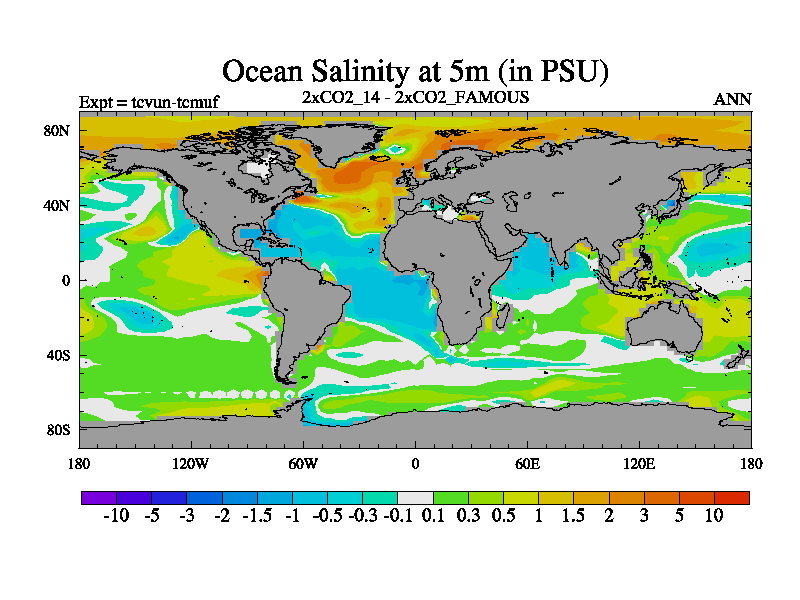

Ocean Salinity at 5mOcean Salinity at 2116m

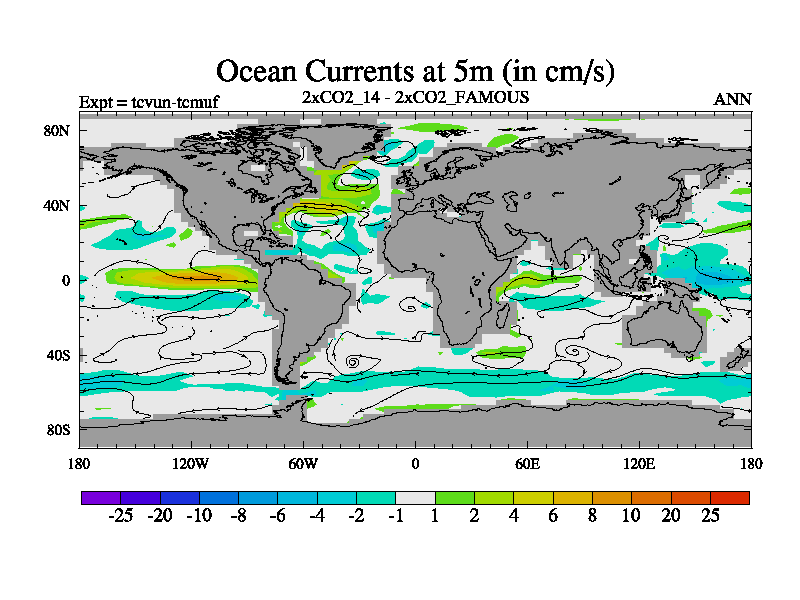

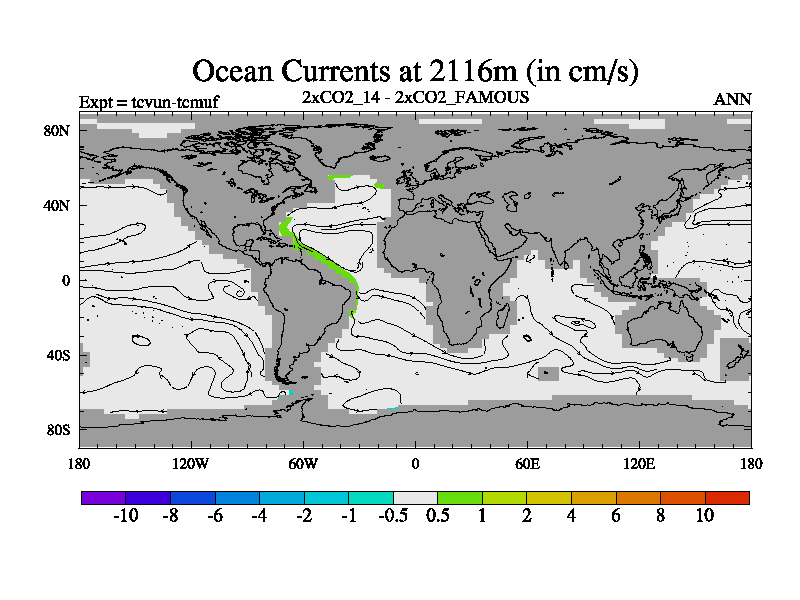

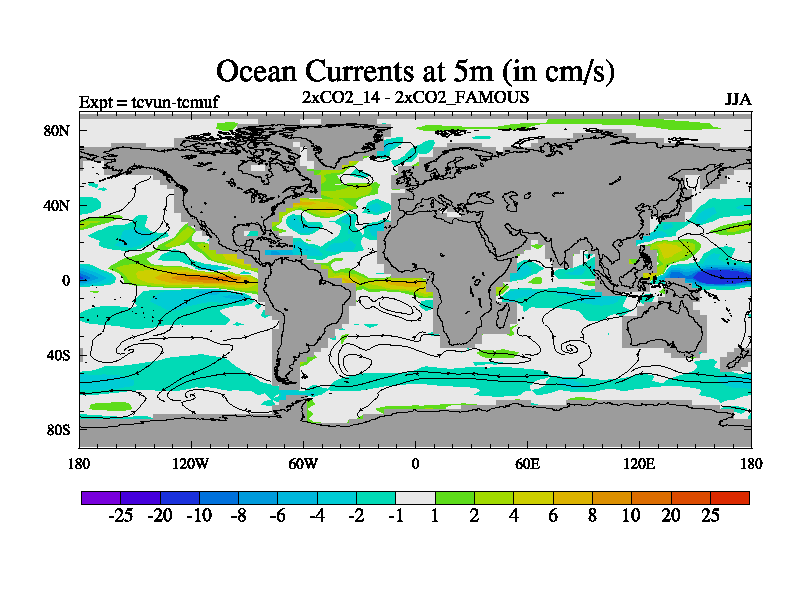

Ocean Currents at 5mOcean Currents at 2116m

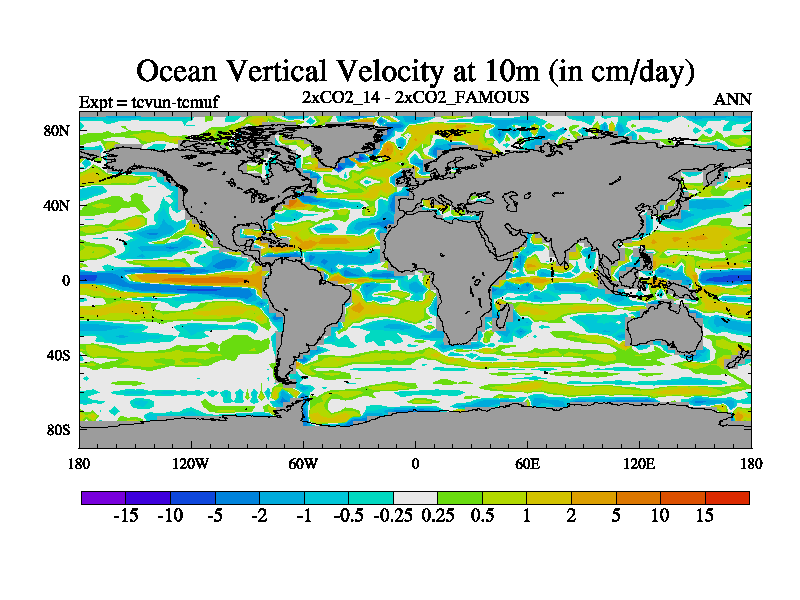

Ocean Vertical Velocity at 10m

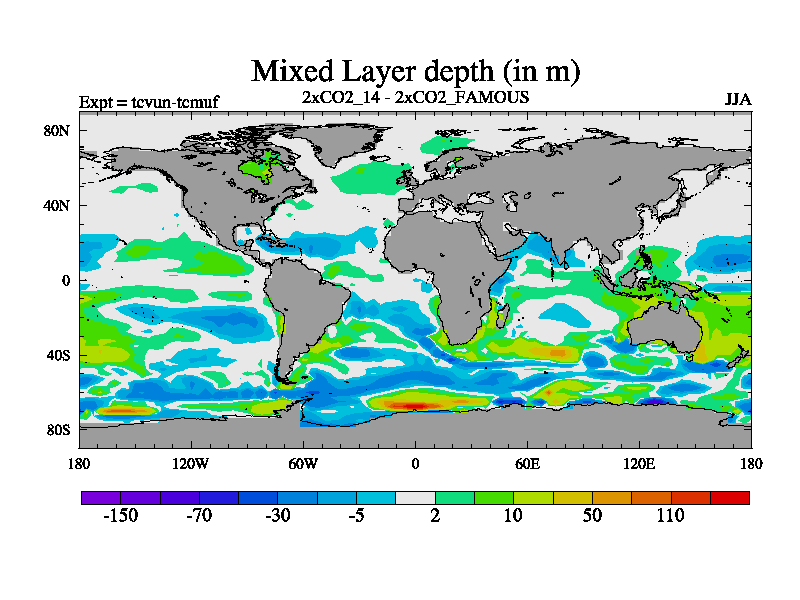

Ocean Mixed Layer DepthMass Streamfunction

Summary of Results for Experiment tcvun-tcrun

Ocean Mixed Layer DepthAtlantic Meridional Overturning StrengthDepth of Max Atlantic OverturningLatitude of Max Atlantic Overturning

Variable

DJFJJAANNMonthlyVariable

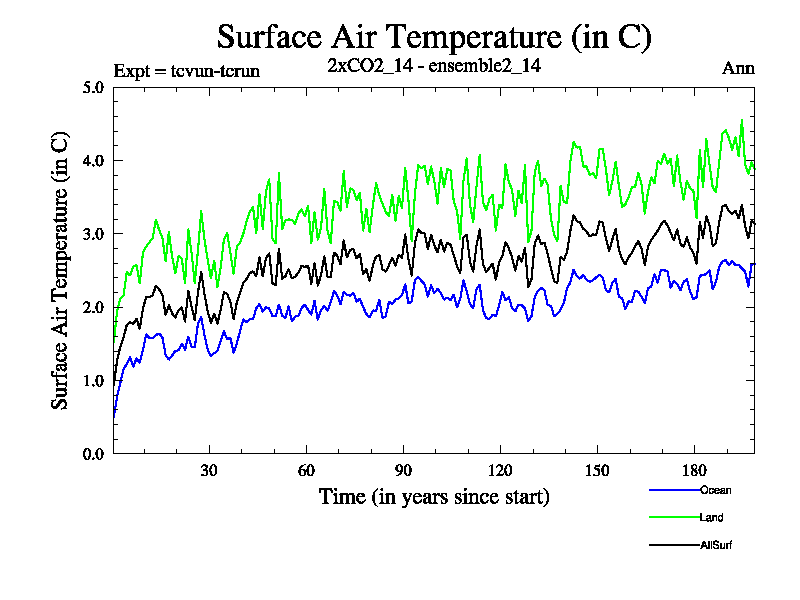

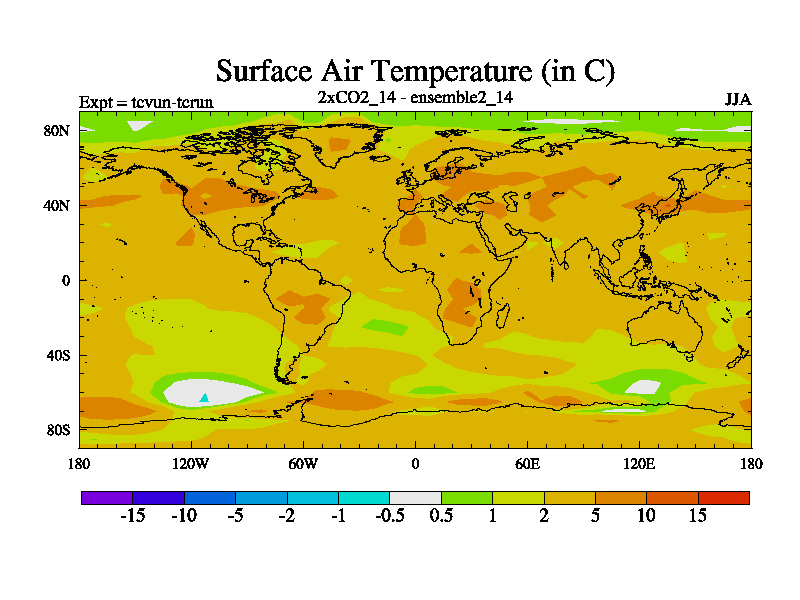

Surface Air TemperatureSurface Air Temperature Time Series
Total PrecipitationSurface Air Temperature Time Series (annual means)

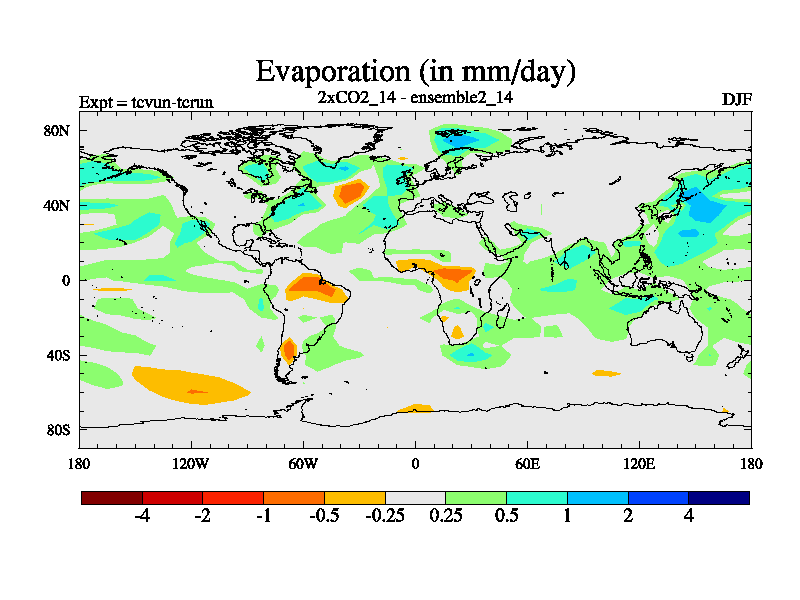

EvaporationSoil Moisture in Layer 4 (Deepest layer)

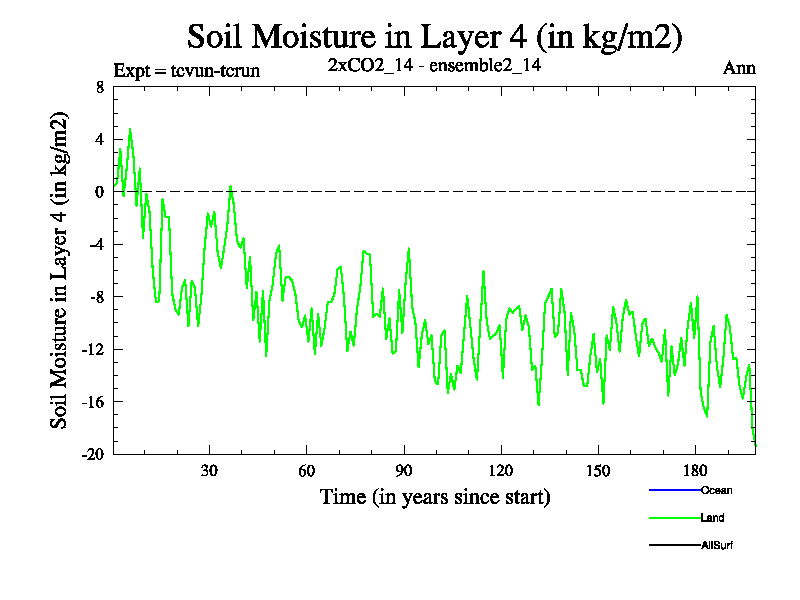

Precipitation - EvaporationSoil Moisture in Layer 4 (Deepest layer) (annual means)

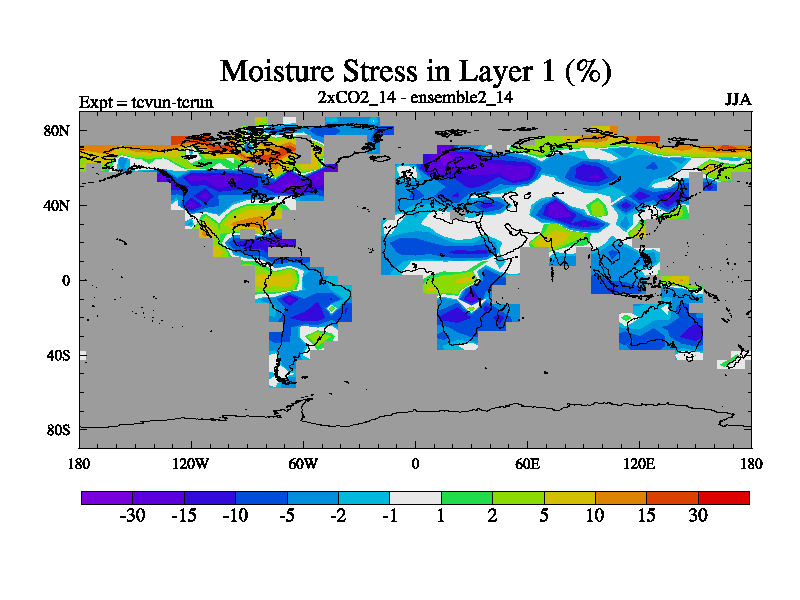

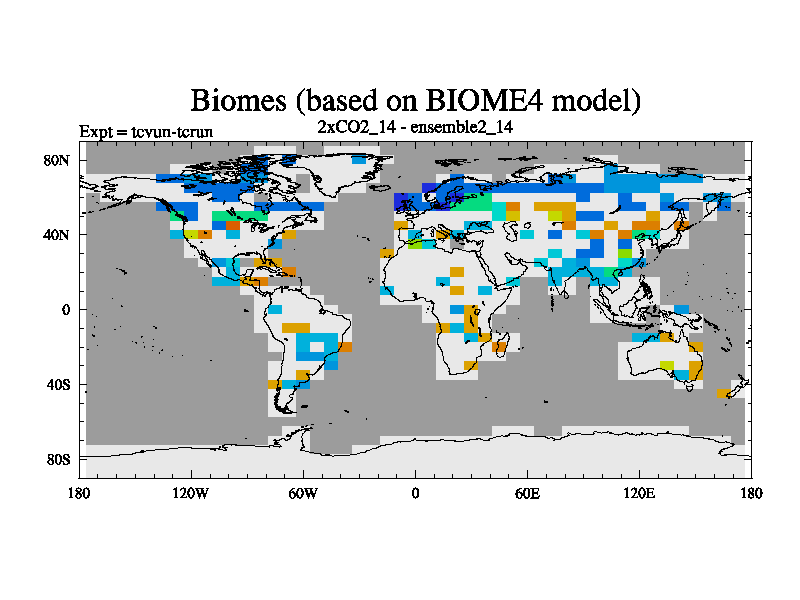

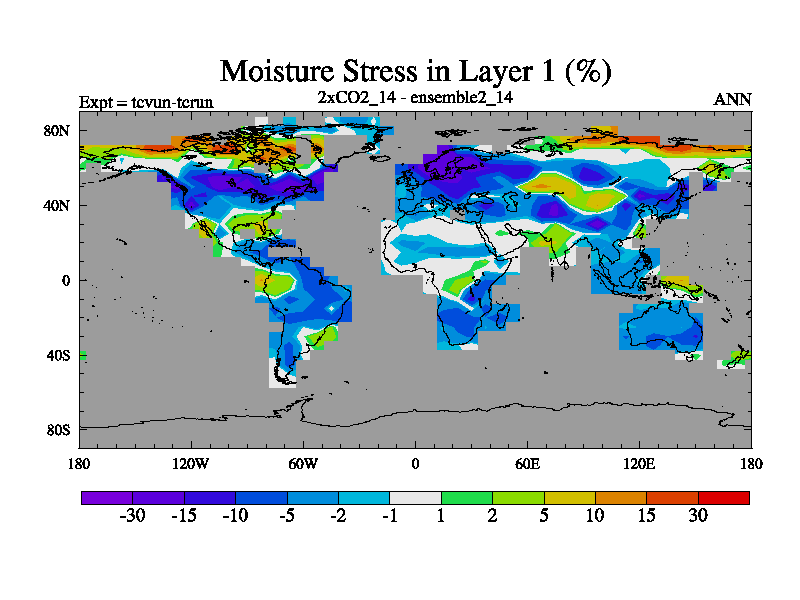

Fractional Plant Stress (layer 1)BIOME4
Mean Sea Level PressureBIOME4 with CO2 changed

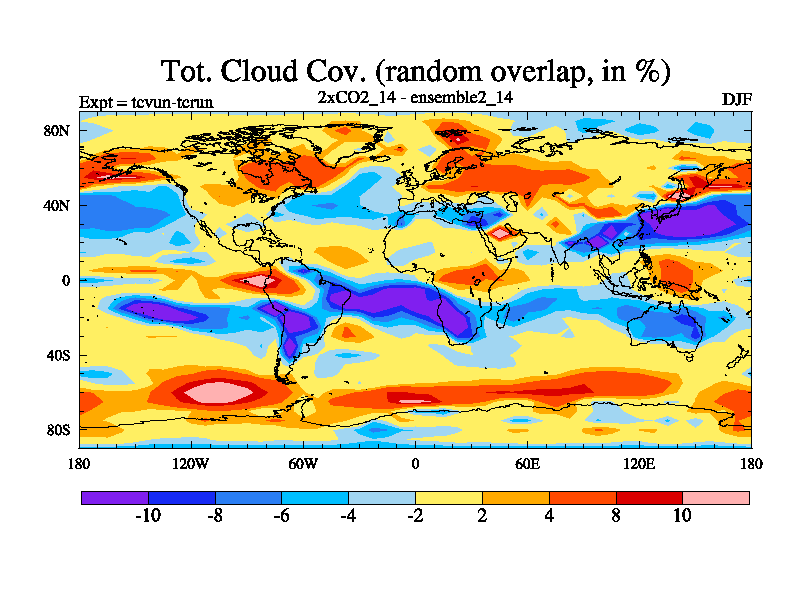

Total Cloud Cover

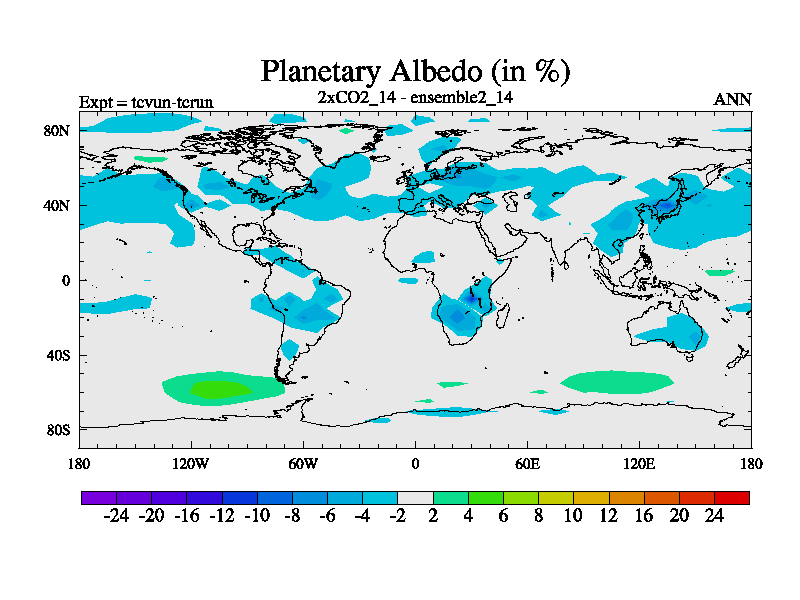

Plantary AlbedoWarm Month Mean

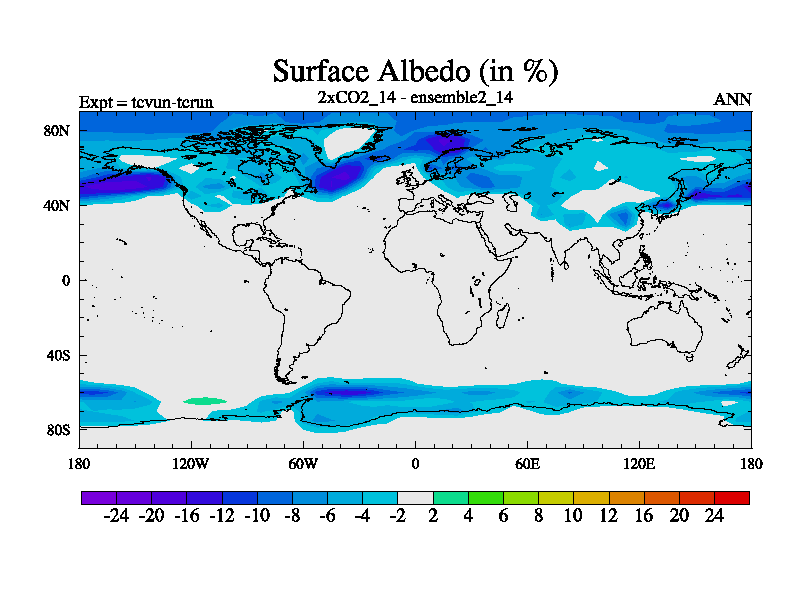

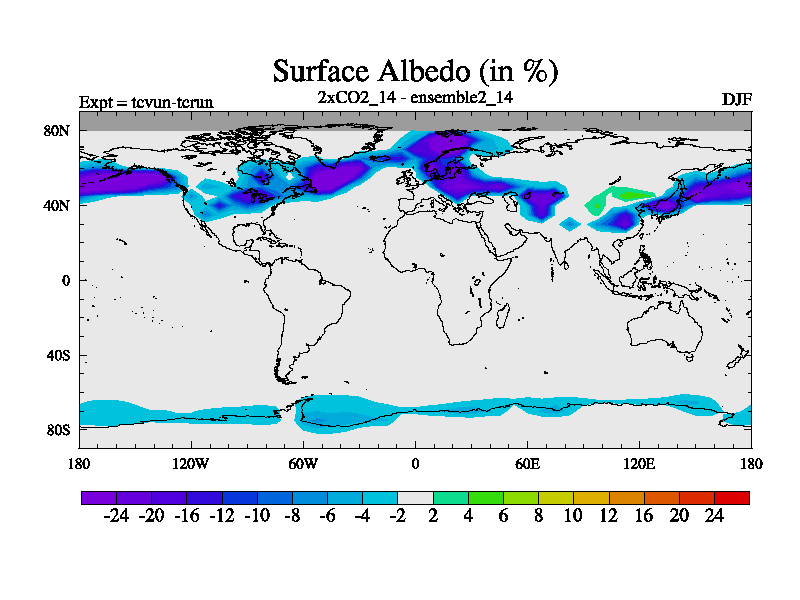

Surface AlbedoCold Month Mean

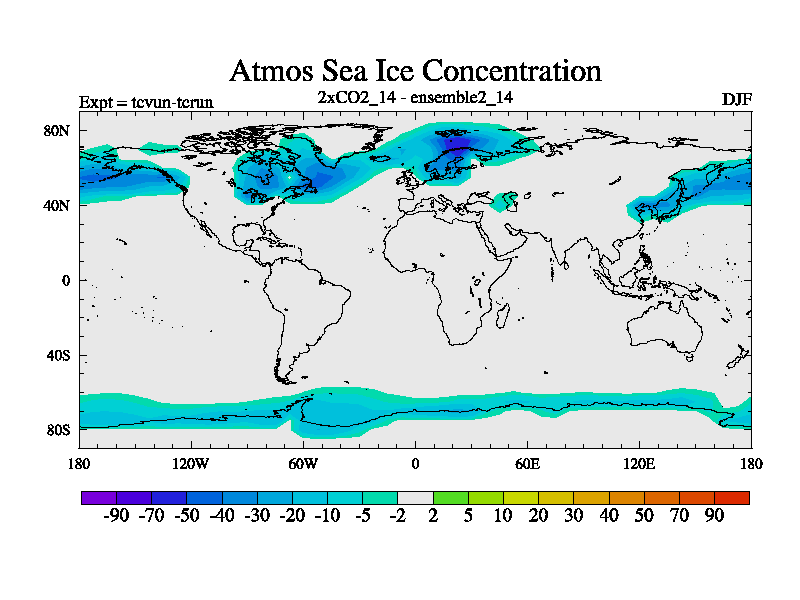

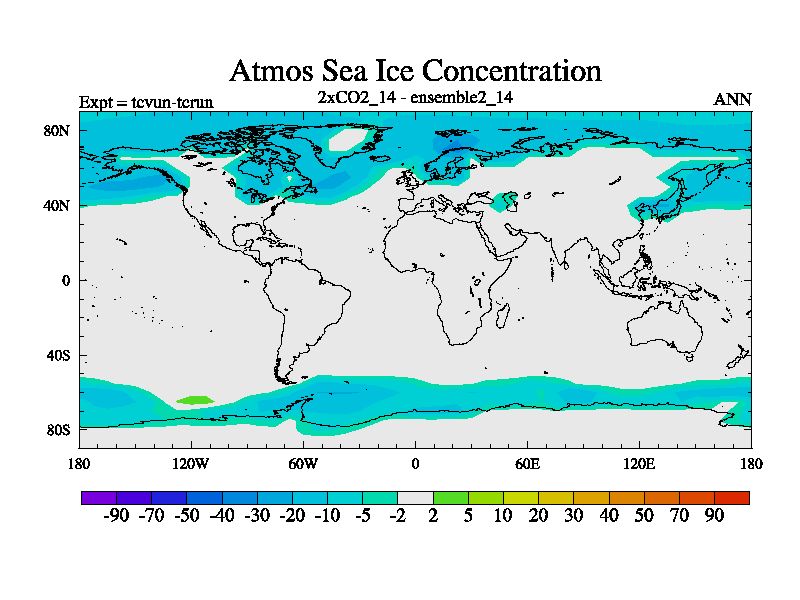

Sea Ice Concentration
Perturbation Height at 500 hPa

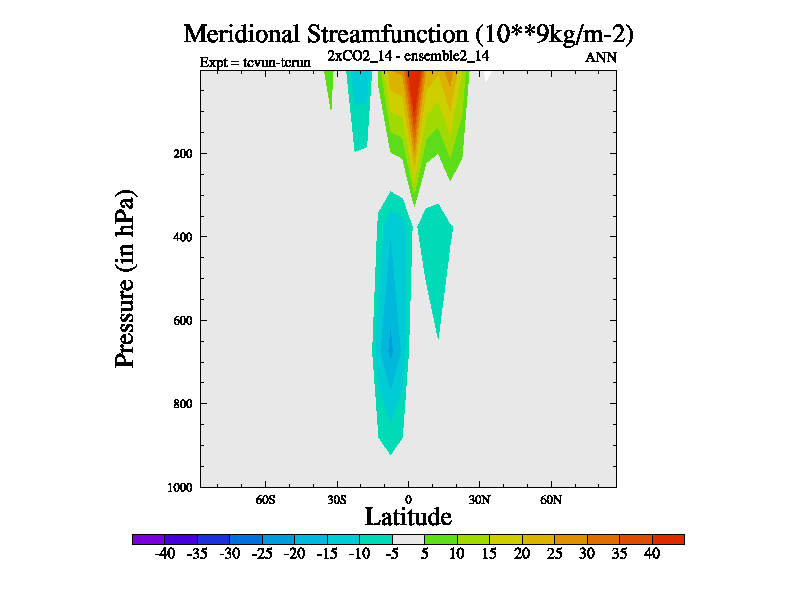

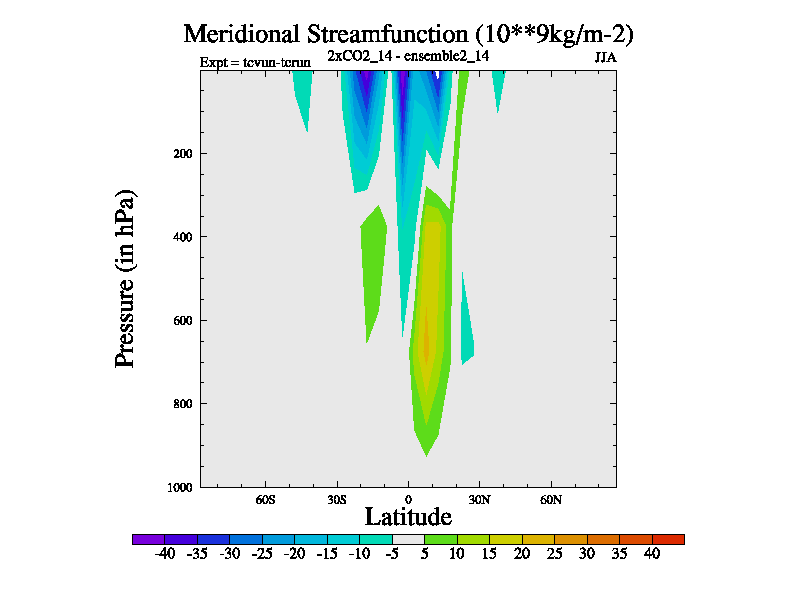

Meridional Stream Function

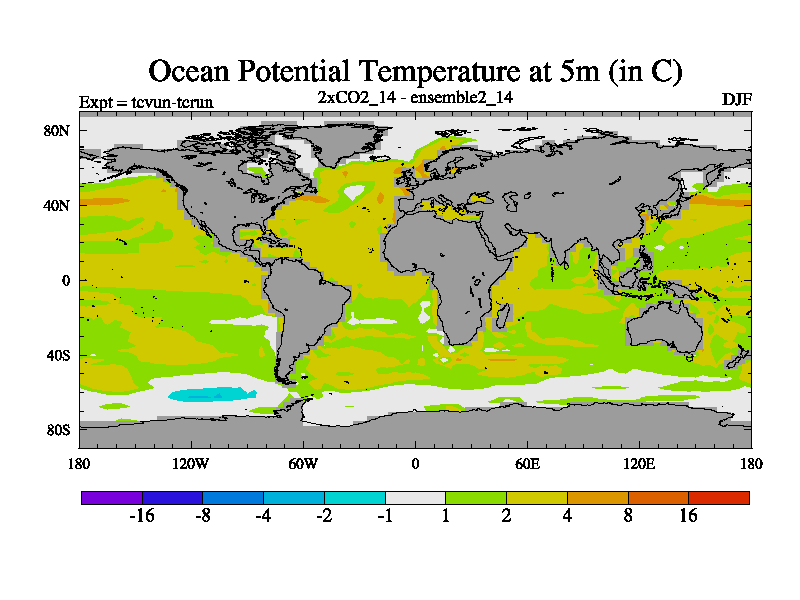

Ocean Potential Temperature at 5mOcean Potential Temperature at 2116m

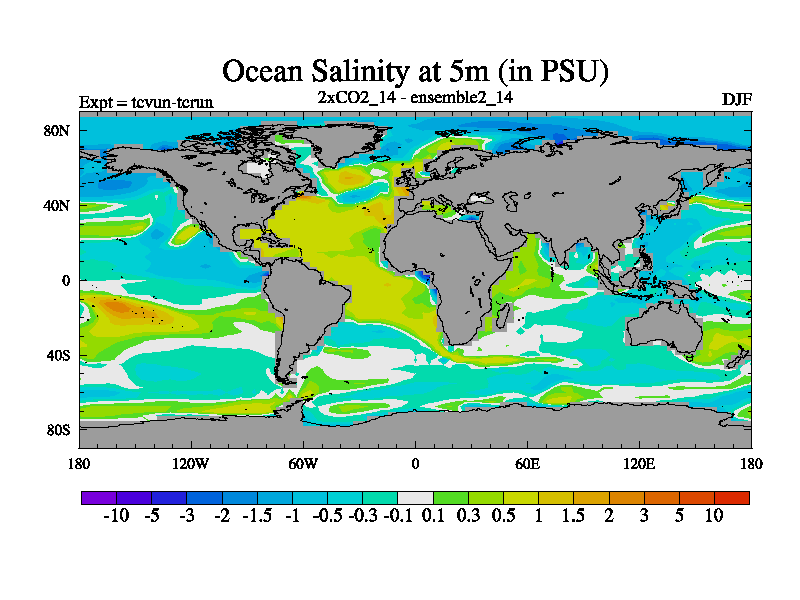

Ocean Salinity at 5mOcean Salinity at 2116m

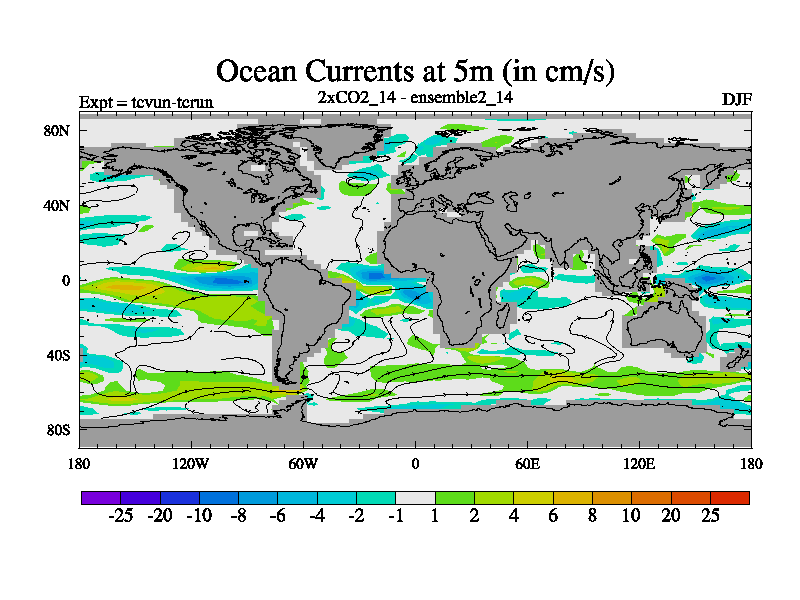

Ocean Currents at 5mOcean Currents at 2116m

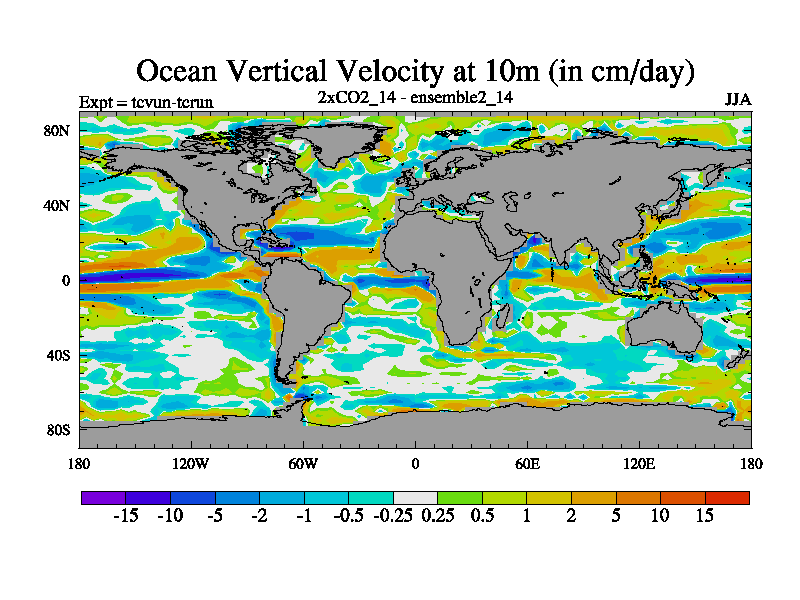

Ocean Vertical Velocity at 10m

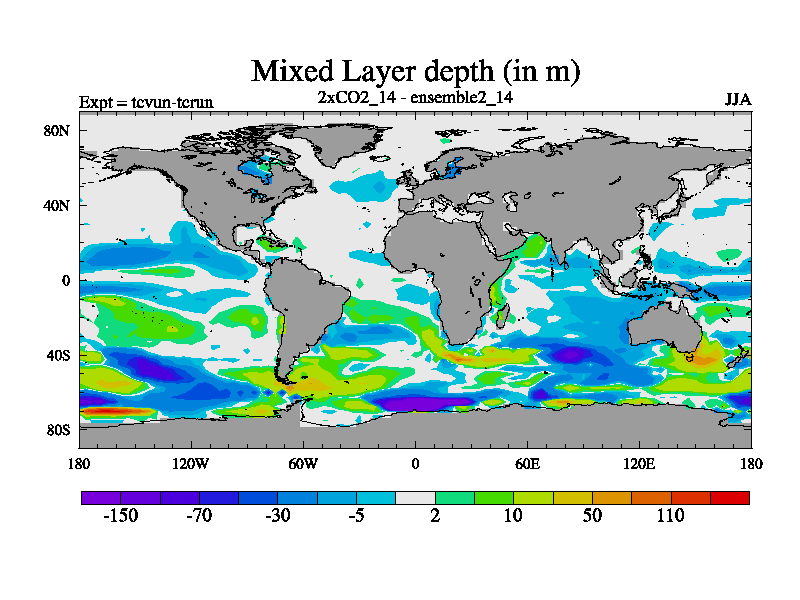

Ocean Mixed Layer DepthMass Streamfunction
