Earth Systems Modelling Results

Bristol Research Initiative for the Dynamic Global Environment

with the

University of Reading, Open University, and the British Antarctic Survey.

Model Simulations

Experiment: tcrpb

Famous 4.5.3 deglaciation 21k-20k run on babybluecrystal. Land-sea mask is constructed from ice-5g. Orital forcing and ghg concentrations (CO2, CH4, and N2O) are set to 21.0k values (according to PMIP2). CFC 0, O3 has 3 prescribed modern (not pre-industrial) values are 12 ppbv for the troposphere, 120 ppbv for the tropopause and 900 ppbv for the stratosphere. Freashwater fluxes consist of the modern ice calving flux. The run is initialised with modern values for terrestrial variables and albedo. soil moisture and soil temp are from 21.0k (tcnvb). These are extrapolated onto the new land points. Run starts from a 21k equilibrium run tcole (1000 years long). This is not an accelerated run, job length is 200 yrs.

Brief Description	Fuller Description	Total Length of Run (in years)	Averaging period (in years)	Spinup period (in years)	CO2 (in ppmv)	CH4 (in ppbv)	N2O (in ppbv)	CFC11 (in pptv)	CFC12 (in pptv)	Computer used for simulation	Compiler used for simulation	Date of first entry in datebase	Date of most recent modification to entry in database
FAMOUS_4.5.3_21k_PMIP_bigblue	Famous 4.5.3, 21.0k. PMIP2 set up, Ice5g topog, land-sea mask and ice-sheet, PMIP GHG values and higher ocean salinity. Should be the LGM control run for the tuning of FAMOUS. This is a copy of tcmul but run on bigblue. As tcrpa1 but using 8/2 processors (tcrpa used 4/2)	250	30	220	185	350	200	0	0	bigblue	Intel_v10.1	2009_03_21_17_50	2009_03_21_17_53
You can access the means from this run, by going here
You can access the ocean integrals from this run, by going here

This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system

Summary of Results for Experiment tcrpb

Atlantic Meridional Overturning Strength		Depth of Max Atlantic Overturning		Latitude of Max Atlantic Overturning
Variable	DJF	JJA	ANN	Monthly	Variable

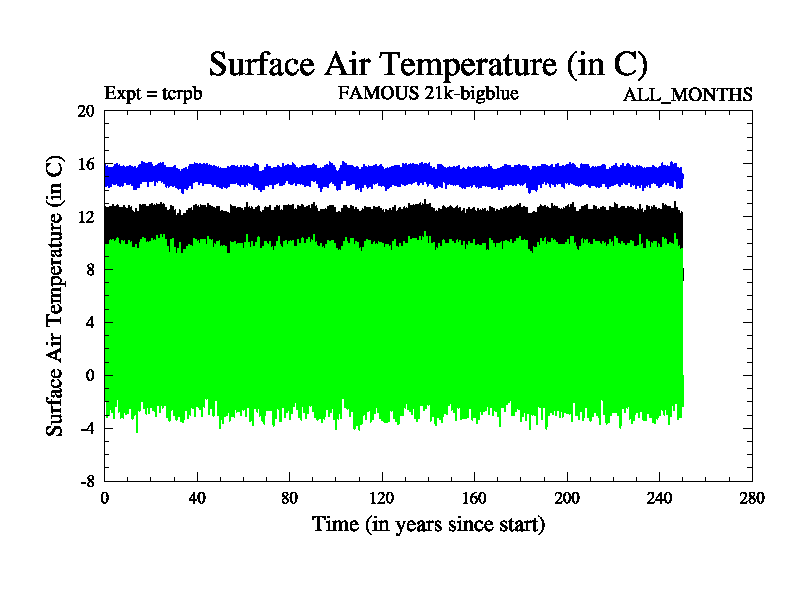

Surface Air Temperature					Surface Air Temperature Time Series
Total Precipitation					Surface Air Temperature Time Series (annual means)
Evaporation					Soil Moisture in Layer 4 (Deepest layer)
Precipitation - Evaporation					Soil Moisture in Layer 4 (Deepest layer) (annual means)
Fractional Plant Stress (layer 1)					BIOME4
Mean Sea Level Pressure					BIOME4 with CO2 changed

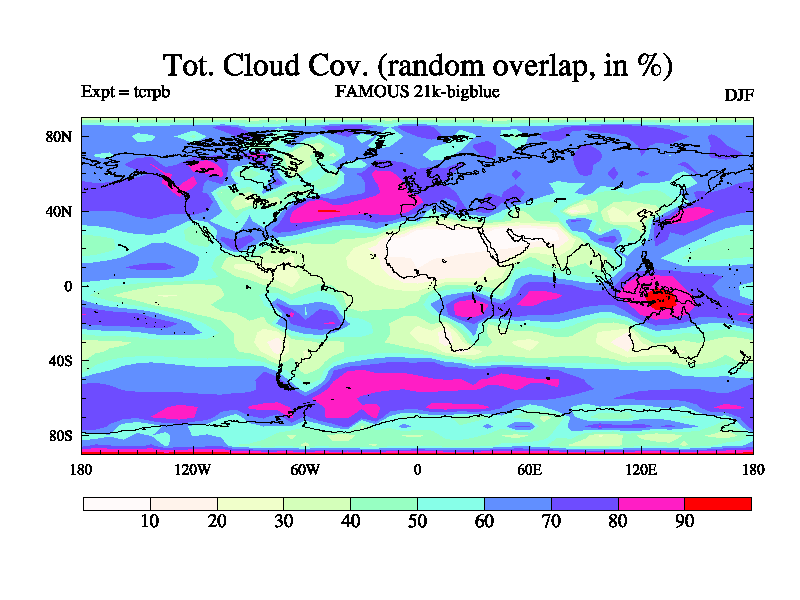

Total Cloud Cover
Plantary Albedo					Warm Month Mean
Surface Albedo					Cold Month Mean

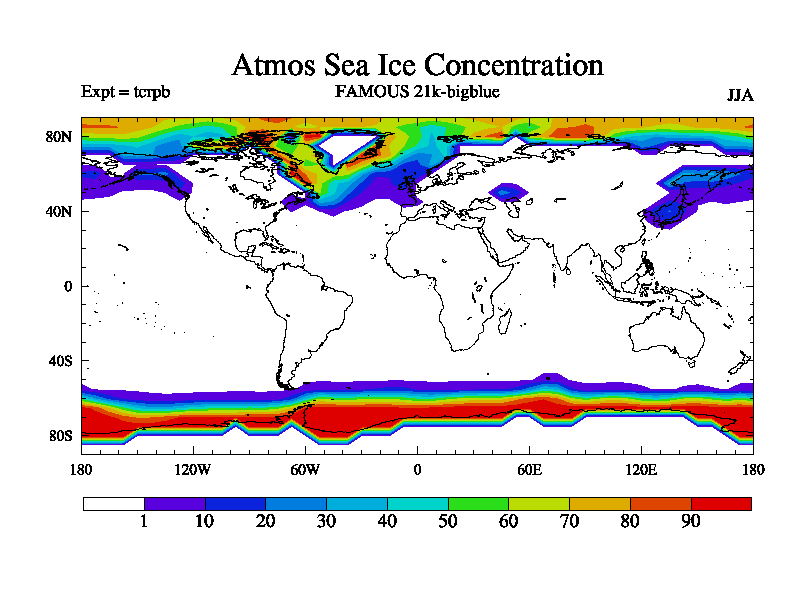

Sea Ice Concentration

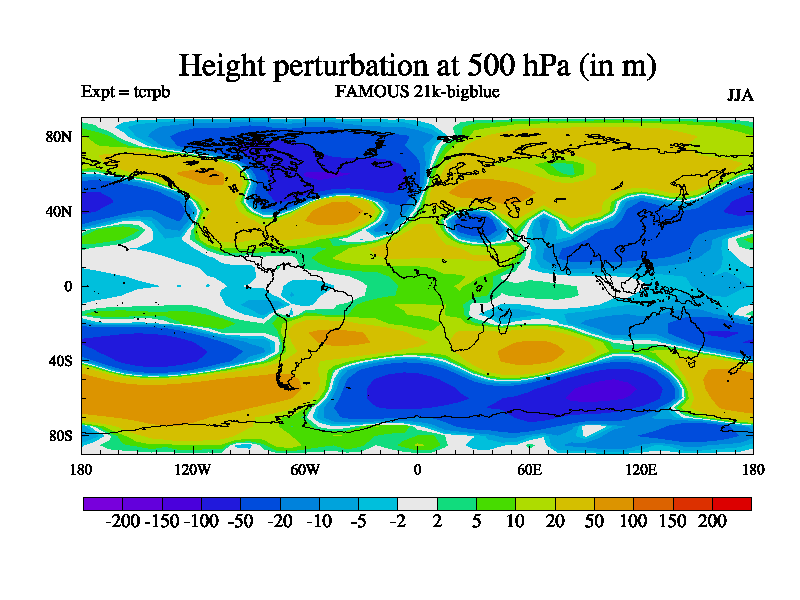

Perturbation Height at 500 hPa
Meridional Stream Function
Ocean Potential Temperature at 5m					Ocean Potential Temperature at 2116m
Ocean Salinity at 5m					Ocean Salinity at 2116m
Ocean Currents at 5m					Ocean Currents at 2116m
Ocean Vertical Velocity at 10m

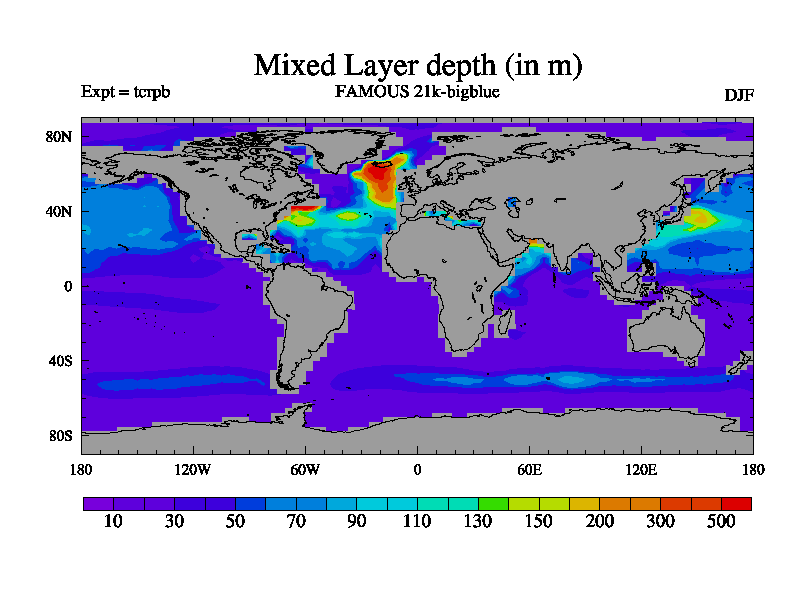

Ocean Mixed Layer Depth					Mass Streamfunction

Summary of Results for Experiment tcrpb-tcrpa1

Variable

DJF

JJA

ANN

Monthly

Variable
